The recommended torque for the M22-2041605 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application and environmental requirements to determine the optimal torque value.
Yes, the M22-2041605 connector is designed to withstand high-vibration environments. Harwin's M22 series connectors are built with a ruggedized design and feature a secure screw-locking mechanism, making them suitable for applications with high vibration, shock, and acceleration.
The M22-2041605 connector is designed to operate in harsh environmental conditions, including extreme temperatures (-40°C to +125°C), humidity, and exposure to chemicals. However, it's crucial to consult the datasheet and application notes to ensure the connector meets the specific environmental requirements of your project.
The M22-2041605 connector has a mating cycle life of 500 cycles minimum, as specified in the Harwin datasheet. This means the connector can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.
Yes, the M22-2041605 connector is part of the M22 series and is compatible with other M22 series connectors. The M22 series features a modular design, allowing for easy mixing and matching of different connector types and configurations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M22-2041605 Overview

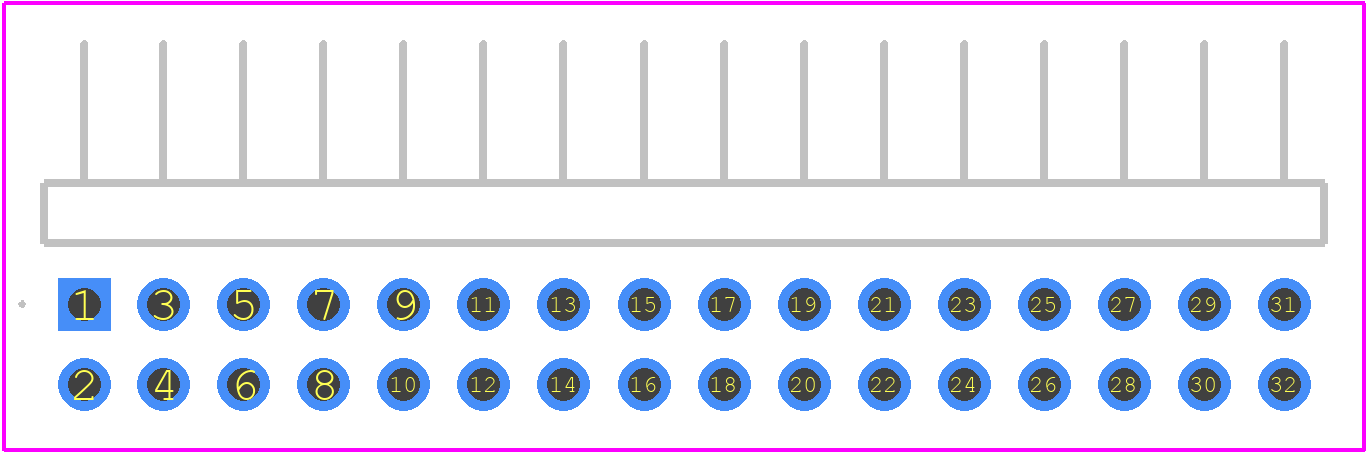

Use the download button to access the M22-2041605 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M22-2,
or try a keyword search, such as Headers and Edge Type Connectors
