The recommended torque for the M22-6003005 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
Yes, the M22-6003005 connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G, 3 axes, 2 hours per axis, as per IEC 61373 Cat 2.
Yes, the M22-6003005 connector is designed for use in harsh environments, with a rating of IP67 (dust-tight and protected against immersion in water up to 1m depth for 30 minutes) and an operating temperature range of -40°C to +125°C.
It is recommended to use the M22-6003005 connector with Harwin's recommended mating connectors to ensure compatibility and optimal performance. However, compatibility with other manufacturers' connectors may be possible, but it's essential to verify compatibility and performance before use.
The maximum current rating for the M22-6003005 connector is 3A per contact, as specified in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M22-6003005 Overview

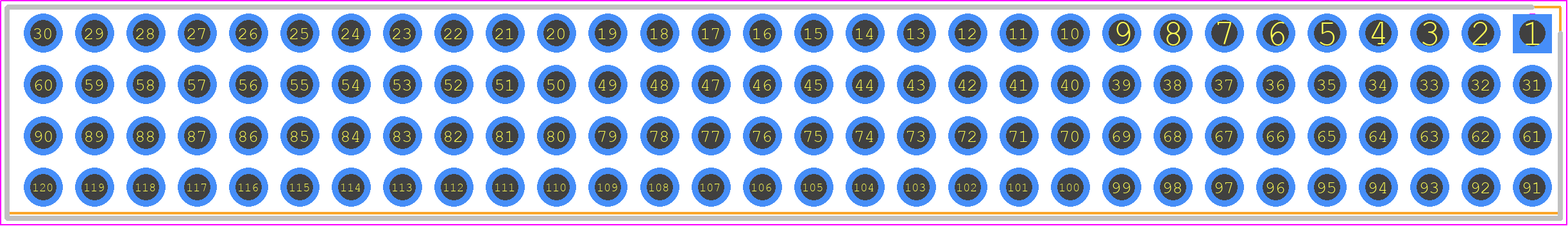

Use the download button to access the M22-6003005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M22-6,
or try a keyword search, such as Headers and Edge Type Connectors
