M22-6013005 - Harwin

Description: M22: 30 x 4-Row Female Receptacle Straight 2.3mm THT Connector

Download M22-6013005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M22-6013005 - Harwin - PCB symbol
click to zoom
PCB Footprints

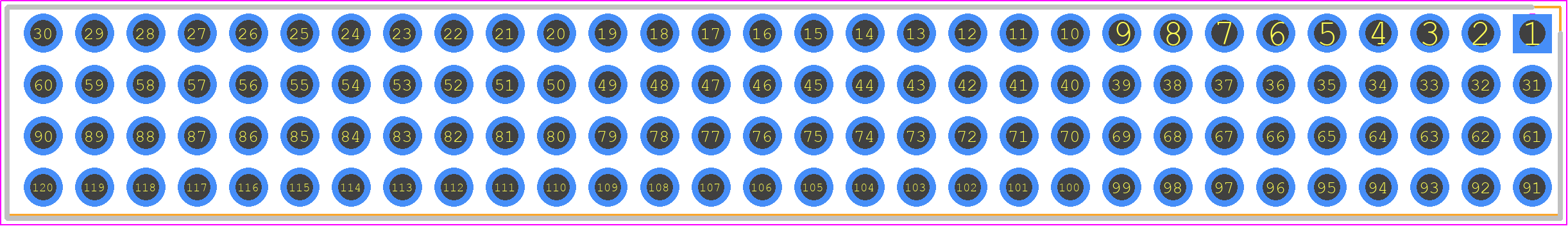

M22-6013005 - Harwin PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - M22-6013005
click to zoom
3D Models
M22-6013005 - Harwin - 3D model - Header, Receptacle - Straight PTH Box - M22-6013005
click to zoom

M22-6013005 Details

  • Manufacturer Part Number:

    M22-6013005

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

M22-6013005 Frequently Asked Questions (FAQs)

  • The recommended torque for the M22-6013005 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the M22-6013005 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the M22-6013005 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The M22-6013005 connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the M22-6013005 connector is designed to be compatible with other Harwin connectors and adapters, allowing for flexibility in design and application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M22-6013005 Overview

Use the download button to access the M22-6013005 schematic symbol, PCB footprint, and 3D model.
