The recommended torque for the screw locks on the M22-6342042 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
Yes, the M22-6342042 connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
Yes, the M22-6342042 connector has a salt spray resistance rating of 500 hours, as per ASTM B117, and can operate in environments with high humidity, making it suitable for use in harsh environments.
The M22-6342042 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
Yes, the M22-6342042 connector is designed for high-speed data transmission, with a bandwidth of up to 3 GHz, making it suitable for use in high-speed applications such as Ethernet and USB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M22-6342042 Overview

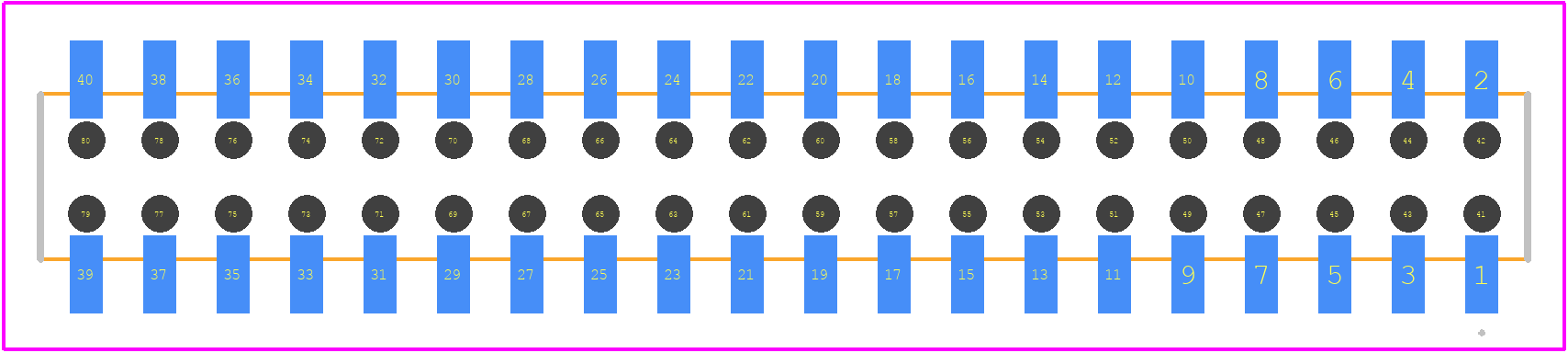

Use the download button to access the M22-6342042 schematic symbol, PCB footprint, and 3D model.
