M22-6361042R - Harwin

Description: M22: 10+10 Pos Receptacle DIL Straight SMT Connector 2.1mm high with Pegs Gold+Tin (T+R)

Download M22-6361042R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M22-6361042R - Harwin - PCB symbol
click to zoom
PCB Footprints

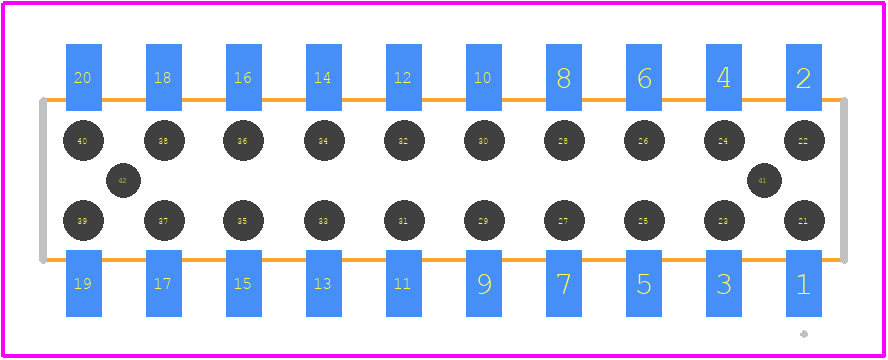

M22-6361042R - Harwin PCB footprint - Other - Other - M22-6361042R-7
click to zoom
3D Models
M22-6361042R - Harwin - 3D model - Other - M22-6361042R-7
click to zoom

M22-6361042R Details

  • Manufacturer Part Number:

    M22-6361042R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • JESD-609 Code:

    e3

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M22-6361042R Overview

Use the download button to access the M22-6361042R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M22-6, or try a keyword search, such as Headers and Edge Type Connectors
