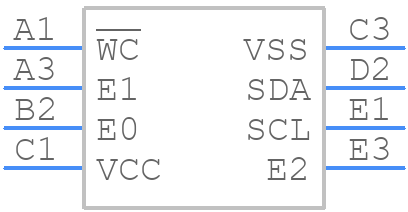

M24256-DFCS6TP/K - STMicroelectronics

M24256-DFCS6TP/K Details

• Manufacturer Part Number:

  M24256-DFCS6TP/K

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLCSP-8

• Country Of Origin:

  Singapore

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Clock Frequency-Max (fCLK):

  1 MHz

• Data Retention Time-Min:

  200

• Endurance:

  4000000 Write/Erase Cycles

• I2C Control Byte:

  1010DDDR

• JESD-30 Code:

  R-XBGA-B8

• Length:

  1.379 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32KX8

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA8(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  1.8 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.58 mm

• Serial Bus Type:

  I2C

• Standby Current-Max:

  0.000001 A

• Supply Current-Max:

  0.0025 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.7 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.289 mm

• Write Cycle Time-Max (tWC):

  5 ms

• Write Protection:

  HARDWARE
