The recommended oscillator crystal frequency for the M251ZD2AE is 12 MHz or 24 MHz, depending on the application and clock speed requirements.
The BOD in the M251ZD2AE can be configured through the BODCR register. The BOD voltage level and hysteresis can be set using the BODVL and BODHYST bits, respectively.
The maximum current that can be sourced or sunk by the GPIO pins of the M251ZD2AE is 4 mA, according to the datasheet. However, it's recommended to limit the current to 2 mA to ensure reliable operation.
The M251ZD2AE has a built-in watchdog timer that can be enabled and configured through the WDTCR register. The watchdog timer can be set to timeout periods ranging from 16 ms to 2048 ms.
The AVR in the M251ZD2AE is used to regulate the voltage supply to the analog circuits, such as the ADC and comparator. It helps to reduce noise and improve the accuracy of analog measurements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M251ZD2AE Overview

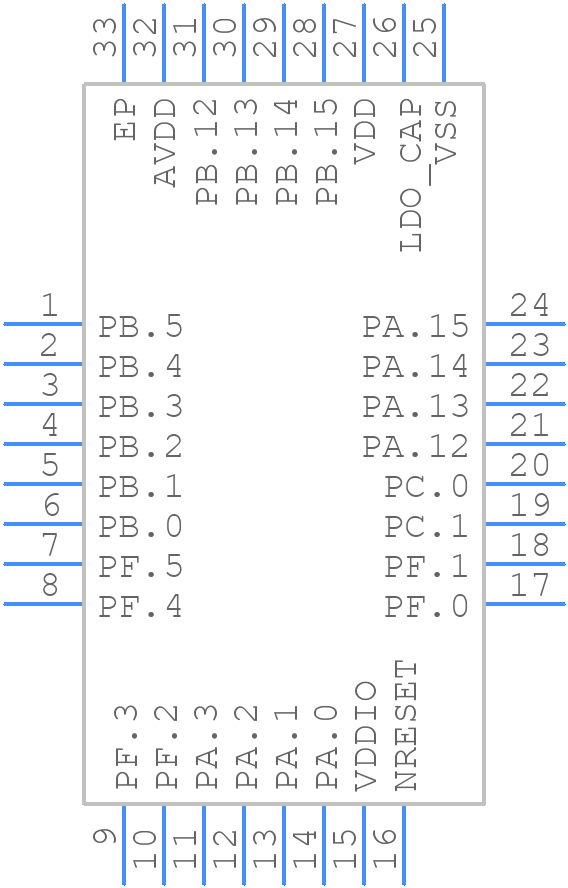

Use the download button to access the M251ZD2AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M251Z,
or try a keyword search, such as Microcontrollers
