M25P16-VMP6G - Micron

Description: MICRON - M25P16-VMP6G - MEMORY, FLASH, SERIAL, 16MB, 8VFQFPN

Download M25P16-VMP6G Model

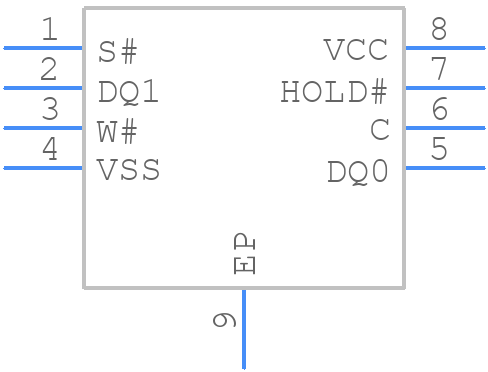

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M25P16-VMP6G - Micron PCB footprint - Small Outline No-lead - Small Outline No-lead - VFQFPN8 (MLP8) 6mm x 5mm
click to zoom
3D Models
M25P16-VMP6G - Micron  - 3D model - Small Outline No-lead - VFQFPN8 (MLP8) 6mm x 5mm
click to zoom

M25P16-VMP6G Details

  • Manufacturer Part Number:

    M25P16-VMP6G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    HVSON, SOLCC8,.25

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    25 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.7 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00001 A

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Cycle Time-Max (tWC):

    15 ms

  • Write Protection:

    HARDWARE/SOFTWARE
