The M25PX16-VMW6TG has an operating temperature range of -40°C to +85°C, making it suitable for industrial and automotive applications.
The HOLD# pin should be pulled high during power-up and power-down sequences to prevent any unwanted writes or erases. It's recommended to use an external pull-up resistor to ensure the pin is held high during these sequences.
The M25PX16-VMW6TG supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
The WP# pin should be pulled high during normal operation to enable write and erase operations. If the WP# pin is pulled low, the device will be in a protected state, and write and erase operations will be disabled.
The typical programming time for the M25PX16-VMW6TG is around 10-15 ms per 256-byte page. However, this time may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M25PX16-VMW6TG Overview

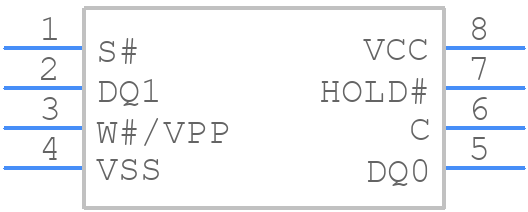

Use the download button to access the M25PX16-VMW6TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M25PX,
or try a keyword search, such as Flash Memories
