The M25PX80-VMN6P supports up to 100,000 erase cycles.
The M25PX80-VMN6P uses a page write buffer to handle page write operations. The buffer is 256 bytes, and the device can perform a maximum of 256 bytes of page write operations in a single cycle.
The Write Enable Latch (WEL) signal is used to enable or disable write operations to the device. When WEL is high, write operations are enabled, and when WEL is low, write operations are disabled.
The M25PX80-VMN6P has a built-in power-on reset circuit that initializes the device to a known state after power-on. The device also has a reset pin that can be used to reset the device externally.
The maximum operating frequency of the M25PX80-VMN6P is 75 MHz.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M25PX80-VMN6P Overview

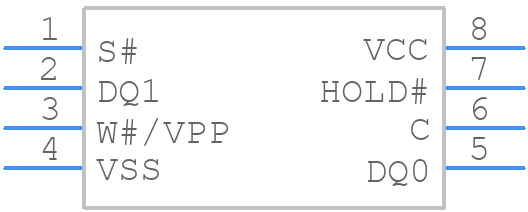

Use the download button to access the M25PX80-VMN6P schematic symbol, PCB footprint, and 3D model.
