M2716F1 - STMicroelectronics

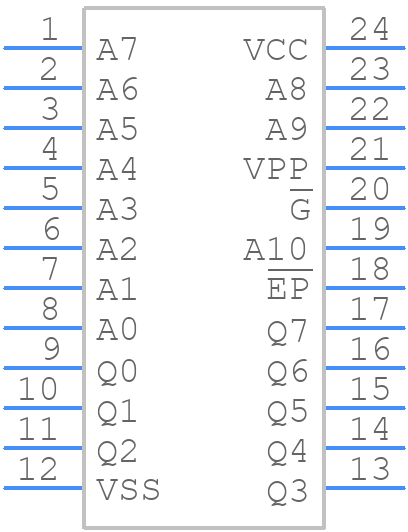

M2716F1 Details

• Manufacturer Part Number:

  M2716F1

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

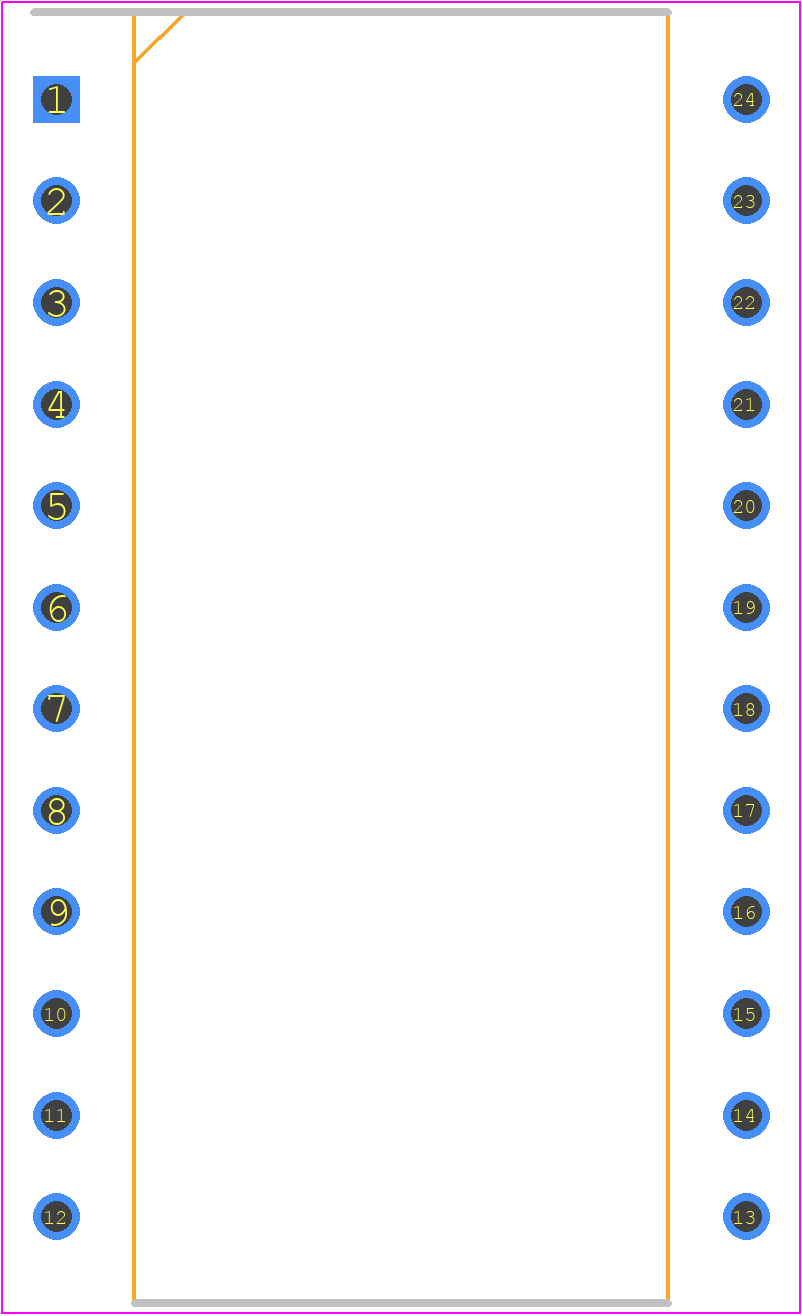

• Package Description:

  WINDOWED, FRIT SEALED, CERAMIC, DIP-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.61

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Access Time-Max:

  450 ns

• Additional Feature:

  25V PROGRAMMING VOLTAGE

• I/O Type:

  COMMON

• JESD-30 Code:

  R-GDIP-T24

• JESD-609 Code:

  e0

• Length:

  31.75 mm

• Memory Density:

  16384 bit

• Memory IC Type:

  UVPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  2KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  25 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.715 mm

• Supply Current-Max:

  0.1 mA

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  NMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
