M27C800-100F1 - STMicroelectronics

M27C800-100F1 Details

• Manufacturer Part Number:

  M27C800-100F1

• Part Life Cycle Code:

  Obsolete

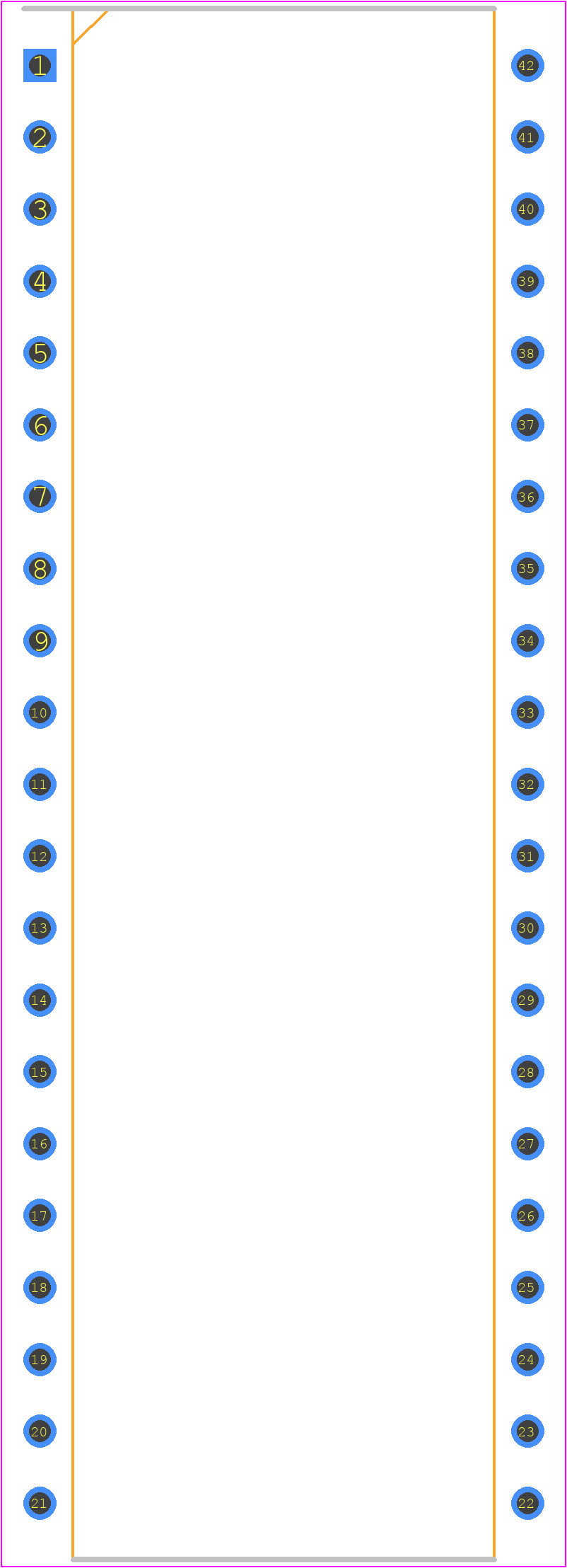

• Part Package Code:

  DIP

• Package Description:

  WINDOWED, FRIT SEALED, CERAMIC, DIP-42

• Pin Count:

  42

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.61

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Access Time-Max:

  100 ns

• Alternate Memory Width:

  8

• I/O Type:

  COMMON

• JESD-30 Code:

  R-GDIP-T42

• JESD-609 Code:

  e0

• Length:

  54.635 mm

• Memory Density:

  8388608 bit

• Memory IC Type:

  UVPROM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Terminals:

  42

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  WDIP

• Package Equivalence Code:

  DIP42,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, WINDOW

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.97 mm

• Standby Current-Max:

  0.00005 A

• Supply Current-Max:

  0.07 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
