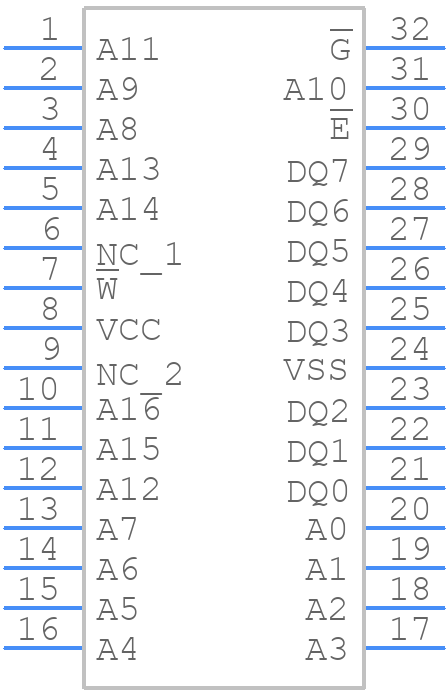

M29F010B45N1 - STMicroelectronics

M29F010B45N1 Details

• Manufacturer Part Number:

  M29F010B45N1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSOP

• Package Description:

  8 X 20 MM, PLASTIC, TSOP-32

• Pin Count:

  32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Access Time-Max:

  45 ns

• Command User Interface:

  YES

• Data Polling:

  YES

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G32

• JESD-609 Code:

  e0

• Length:

  18.4 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  8

• Number of Terminals:

  32

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  128KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP32,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Sector Size:

  16K

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.02 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  8 mm
