The M29F160FT55N3E2 has an operating temperature range of -40°C to +85°C.
The device requires a controlled power-up and power-down sequence to prevent latch-up and ensure proper operation. A slow ramp-up and ramp-down of the power supply voltage is recommended.
The recommended clock frequency for the M29F160FT55N3E2 is up to 55 MHz.
To prevent bus contention and bus loading, ensure that only one device is driving the bus at a time, and use bus buffers or resistors to minimize loading.
The M29F160FT55N3E2 has an access time of 55 ns and a latency of 2-3 clock cycles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M29F160FT55N3E2 Overview

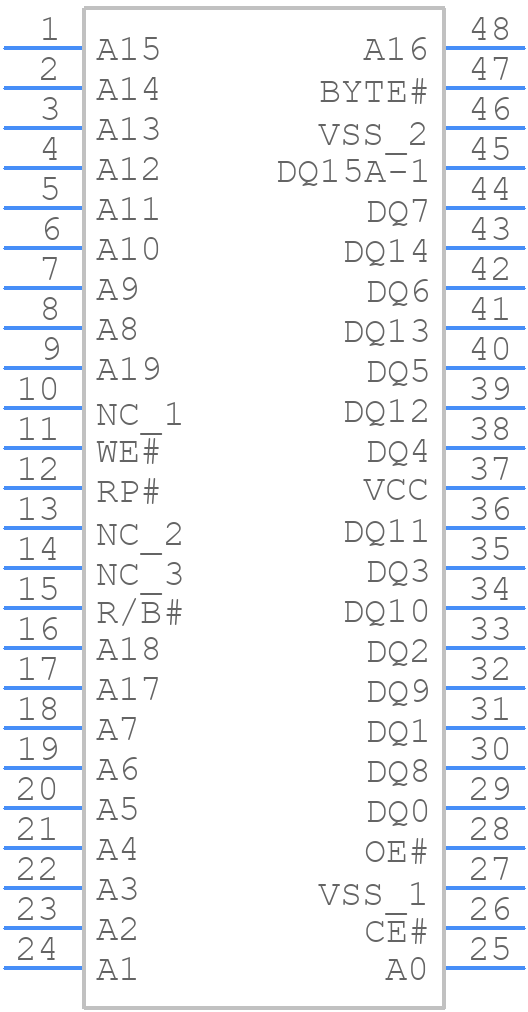

Use the download button to access the M29F160FT55N3E2 schematic symbol, PCB footprint, and 3D model.
