Part Image

M29F800FB5AN6E2 - Alliance Memory

Description: NOR Flash NOR Flash(Micron) , PARALLEL, 8Mb, TSOP 48PIN, 55ns, -40 +85 C, BOTTOM, Tray

Download M29F800FB5AN6E2 Model

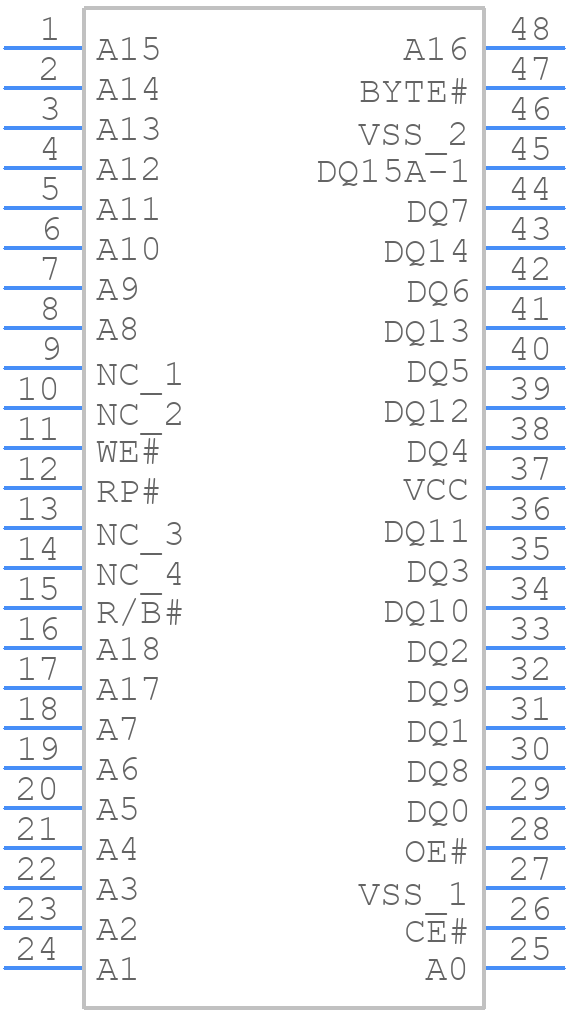

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M29F800FB5AN6E2 - Alliance Memory PCB footprint - Small Outline Packages - Small Outline Packages - 48-Lead TSOP – 12mm x 20mm
click to zoom
3D Models
M29F800FB5AN6E2 - Alliance Memory  - 3D model - Small Outline Packages - 48-Lead TSOP – 12mm x 20mm
click to zoom

M29F800FB5AN6E2 Details

  • Manufacturer Part Number:

    M29F800FB5AN6E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4.25

  • Access Time-Max:

    55 ns

  • Alternate Memory Width:

    8

  • Boot Block:

    BOTTOM

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Sectors/Size:

    1,2,1,15

  • Number of Terminals:

    48

  • Number of Words:

    1048576 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    5 V

  • Ready/Busy:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    16K,8K,32K,64K

  • Standby Current-Max:

    0.00012 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    12 mm

M29F800FB5AN6E2 Frequently Asked Questions (FAQs)

  • The M29F800FB5AN6E2 has an operating temperature range of -40°C to 85°C.
  • The device requires a controlled power-up and power-down sequence to prevent latch-up and ensure proper operation. A slow ramp-up and ramp-down of the power supply voltage is recommended.
  • The recommended clock frequency for the M29F800FB5AN6E2 is up to 33 MHz, but it can operate at frequencies up to 40 MHz with some limitations.
  • To avoid bus contention and bus loading issues, ensure that the device is properly terminated and that the capacitive load on the bus is within the recommended specifications.
  • The M29F800FB5AN6E2 has an access time of 70 ns and a latency of 3 clock cycles for read operations.
