The M29W256GL7AN6E has an operating temperature range of -40°C to 85°C.
The device requires a power-up sequence of VCC first, then VPP, and a power-down sequence of VPP first, then VCC. This ensures proper device operation and prevents latch-up.
A good PCB layout and routing for this device involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors near the device.
During power-up and power-down, all input and output signals should be held in a high-impedance state to prevent unwanted device operation.
In the event of a power failure or brownout, the device will reset and all internal states will be lost. The device will resume normal operation once power is restored.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M29W256GL7AN6E Overview

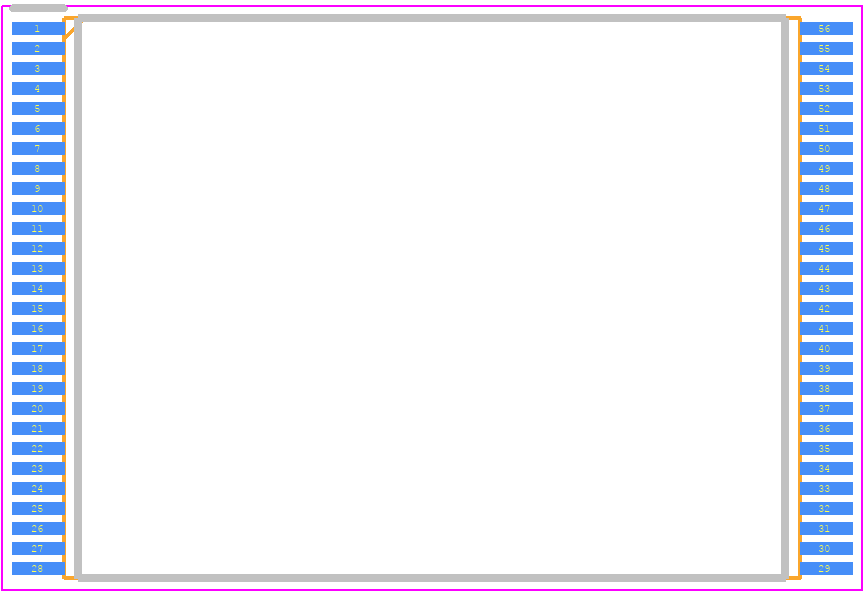

Use the download button to access the M29W256GL7AN6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M29W2,
or try a keyword search, such as Flash Memories
