The recommended operating voltage range for the M29W320DB90N6 is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.5V to 3.9V for a short duration, but prolonged operation outside the recommended range may affect its performance and reliability.
The hold signal (HOLD#) is an active-low input that allows the device to be put in a 'hold' state, suspending the current operation. When HOLD# is low, the device will ignore any new commands and will not respond to read or write requests. To handle the hold signal, ensure that it is driven high during normal operation and only driven low when the device needs to be put in a hold state.
The write protection (WP#) signal is an active-low input that allows the device to be write-protected. When WP# is low, the device will ignore any write commands, and the contents of the memory will be protected from modification. To use the write protection feature, drive WP# low to enable write protection, and drive it high to disable write protection.
The optimal clock frequency for the M29W320DB90N6 depends on the specific requirements of your application. The device can operate at clock frequencies up to 90 MHz, but you should consider factors such as power consumption, noise tolerance, and system performance when selecting the clock frequency. It's recommended to consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
The M29W320DB90N6 is rated for operation up to 85°C, but prolonged exposure to high temperatures can affect its performance and reliability. At high temperatures, the device may experience increased power consumption, reduced performance, and potentially even data loss. It's essential to consider the thermal environment and take necessary precautions, such as heat sinking or thermal management, to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M29W320DB90N6 Overview

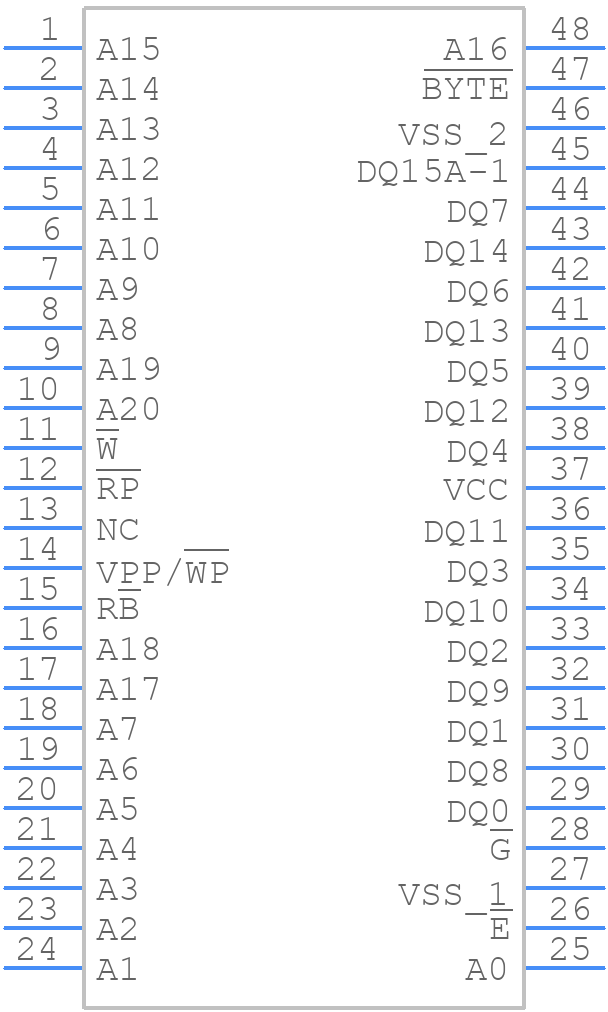

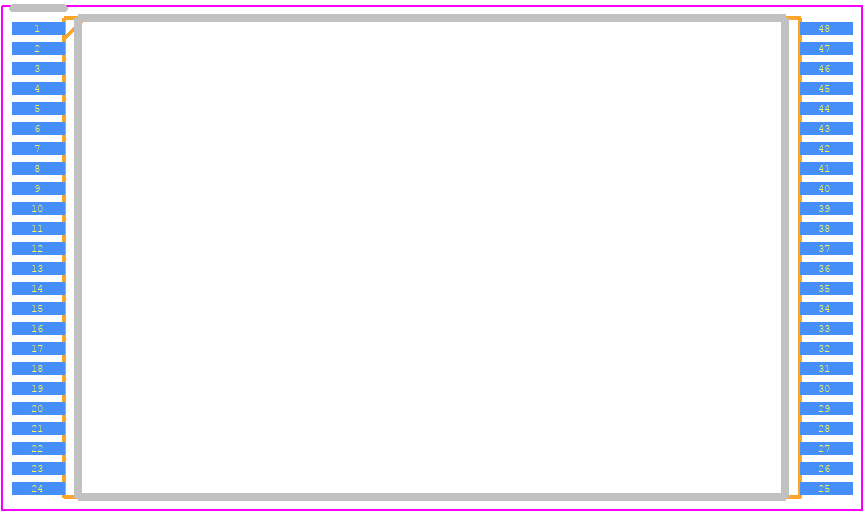

Use the download button to access the M29W320DB90N6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M29W3,
or try a keyword search, such as Flash Memories
