Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for M2B15BA5W30
- Part Number M2B15BA5W30
- Manufacturer NKK Switches
- Pin Count 5
- Part Category Switch
- Package Category Other

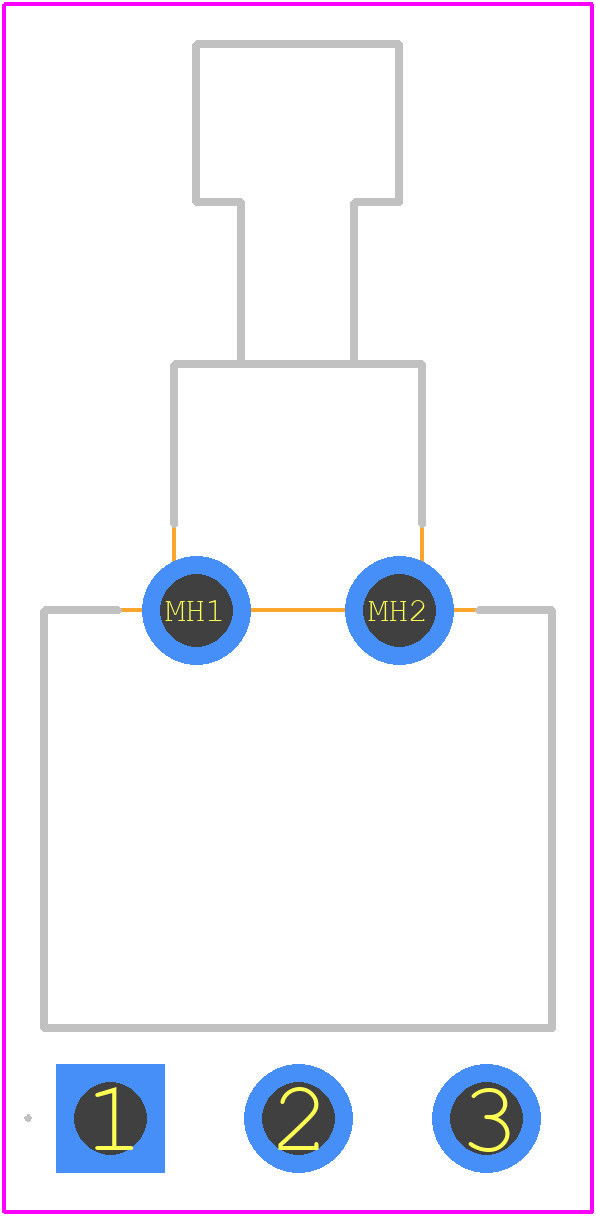

- Footprint Name Other - M2B15BA5W30-1
- Released Date Sep 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M2B15BA5W30 Details
-
Manufacturer Part Number:
M2B15BA5W30
-
Brand Name:
NKK Switches
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
NKK Switches
-
Switch Type:
MINIATURE SWITCH
M2B15BA5W30 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the M2B15BA5W30 switch is -20°C to 85°C.
-
Yes, the M2B15BA5W30 switch is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
-
The expected lifespan of the M2B15BA5W30 switch is 100,000 cycles minimum, but this can vary depending on the application and operating conditions.
-
Yes, the M2B15BA5W30 switch is designed for PCB mounting and can be easily mounted to a printed circuit board using the provided pins.
-
The maximum current rating for the M2B15BA5W30 switch is 5A at 125VAC or 3A at 250VAC.
Trust Checks
Community Provided
System Verified
Community Approved
M2B15BA5W30 Overview
Use the download button to access the M2B15BA5W30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2B15,
or try a keyword search, such as Pushbutton Switches
