M2T12SA5G13 - NKK Switches

M2T12SA5G13 Details

• Manufacturer Part Number:

  M2T12SA5G13

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Angle:

  26 deg

• Actuator Color:

  CHROME

• Actuator Finish:

  CHROME

• Actuator Length:

  0.5 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE BAT

• Body Breadth:

  8.001 mm

• Body Height:

  35.433 mm

• Body Length or Diameter:

  15.748 mm

• Bushing Diameter:

  0.268 inch

• Bushing Length:

  0.25 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(AC)-Max:

  0.014 A

• Contact Current(DC)-Max:

  0.014 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(AC)-Max:

  28 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  GLASS FILLED REINFORCED NYLON

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

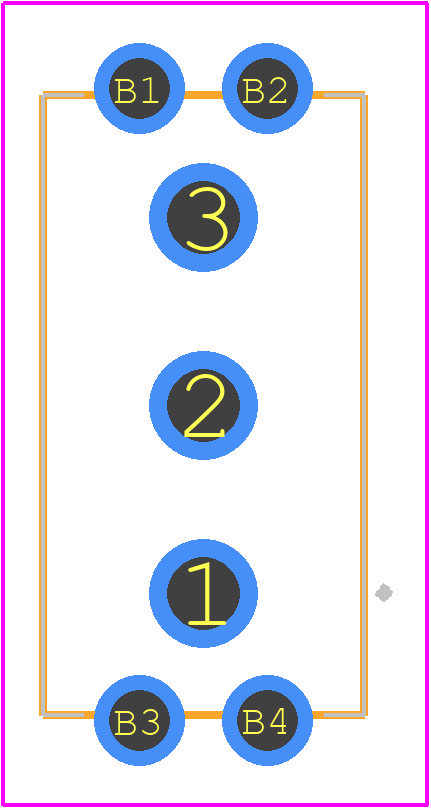

• PCB Hole Count:

  7

• Sealing:

  EPOXY

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD/SILVER

• Terminal Length:

  0.185 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
