M2T12TXG41-DC footprint, schematic symbol and 3D model by NKK Switches

Symbol

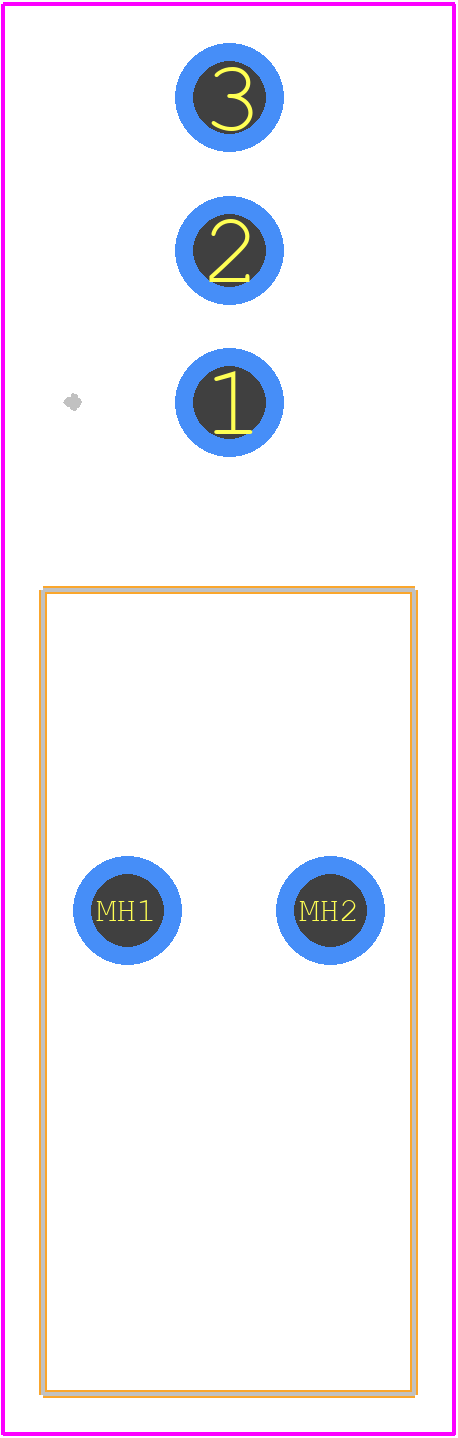

PCB Footprints

3D Models

M2T12TXG41-DC Details

The recommended operating temperature range for the M2T12TXG41-DC switch is -20°C to 85°C.
Yes, the M2T12TXG41-DC switch is designed to withstand high-vibration environments and can operate reliably in applications with vibration levels up to 10G.
The expected lifespan of the M2T12TXG41-DC switch is 10,000 to 50,000 cycles, depending on the operating conditions and usage.
Yes, the M2T12TXG41-DC switch is compatible with most PCB washing and cleaning processes, but it's recommended to follow the manufacturer's guidelines for cleaning and drying to prevent damage.
Yes, the M2T12TXG41-DC switch is designed to operate in humid environments and can withstand relative humidity up to 90% at 40°C.

Expert Contribution

System Verified

Community Approved

Use the download button to access the M2T12TXG41-DC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M2T12, or try a keyword search, such as Rocker Switches
