M300-FV3064500 - Harwin

Description: M300: 3+3 Pos Receptacle DIL Straight 3.2mm THT Connector No Jackscrews

Download M300-FV3064500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M300-FV3064500 - Harwin - PCB symbol
click to zoom

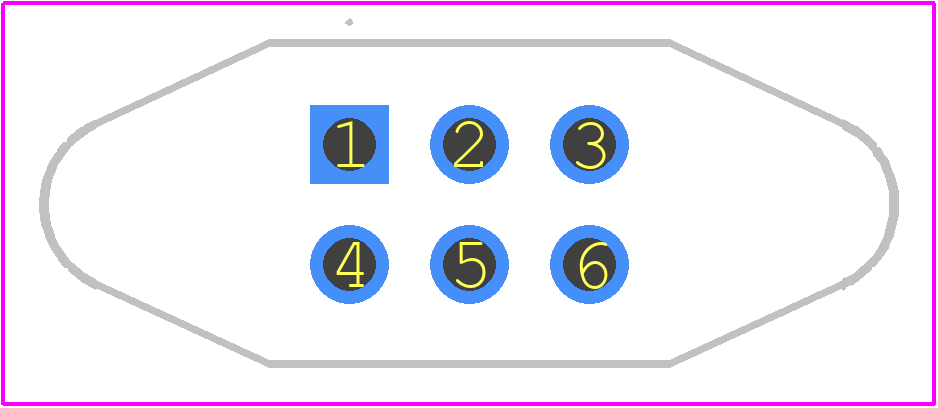

PCB Footprints
M300-FV3064500 - Harwin PCB footprint - Other - Other - M300-FV3064500-1.1
click to zoom
3D Models
M300-FV3064500 - Harwin - 3D model - Other - M300-FV3064500-1.1
click to zoom

M300-FV3064500 Details

  • Manufacturer Part Number:

    M300-FV3064500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Harwin

  • YTEOL:

    7.31

  • Body Breadth:

    0.315 inch

  • Body Depth:

    0.256 inch

  • Body Length:

    0.839 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    UL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0
