M30263F8AFP#U5A - Renesas Electronics

Description: IC MCU 16BIT 64KB FLASH 42SSOP

Download M30263F8AFP#U5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

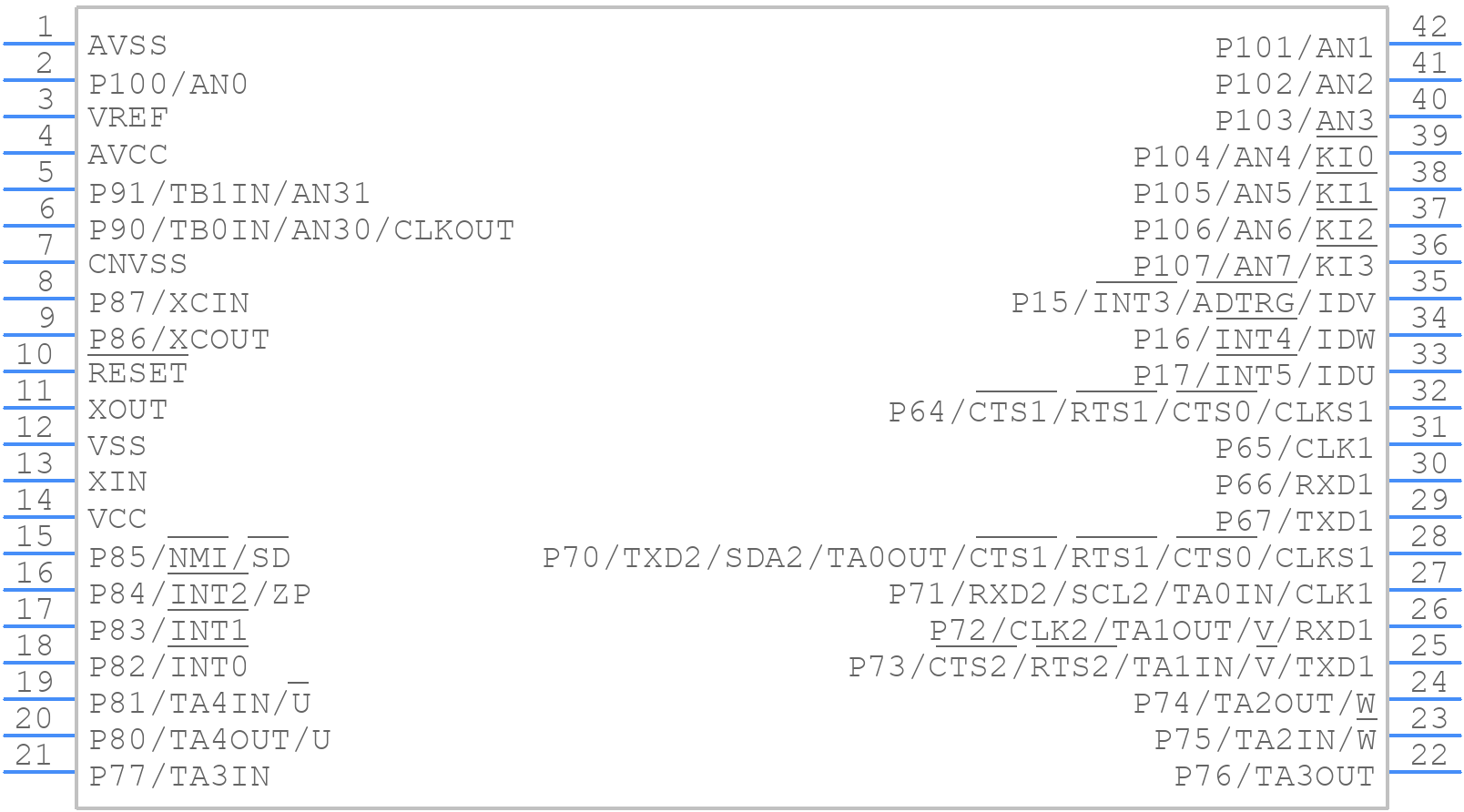

M30263F8AFP#U5A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

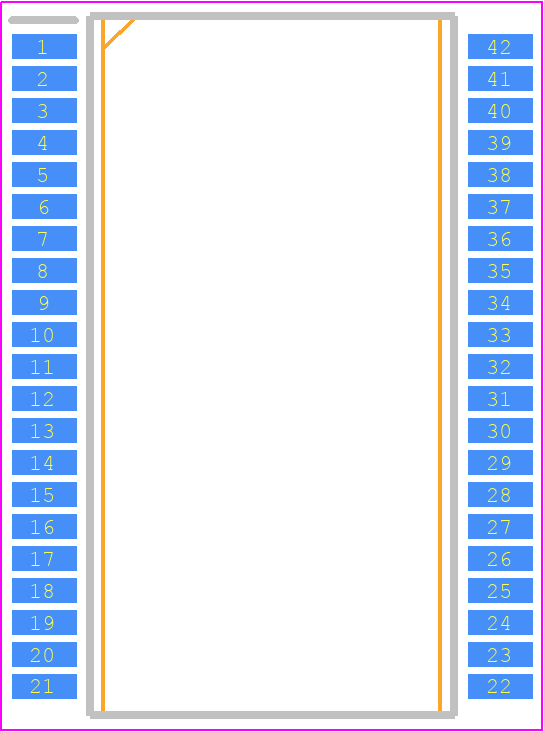

M30263F8AFP#U5A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M30263F6AFP#U5A
click to zoom
3D Models
M30263F8AFP#U5A - Renesas Electronics - 3D model - Small Outline Packages - M30263F6AFP#U5A
click to zoom

M30263F8AFP#U5A Details

  • Manufacturer Part Number:

    M30263F8AFP#U5A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    42

  • Manufacturer Package Code:

    PRSP0042GA-B42

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30263F8AFP#U5A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M30263F8AFP#U5A is -40°C to +85°C, but it can operate up to +125°C for short periods of time.
  • The clock settings for the M30263F8AFP#U5A can be configured using the Clock Generator Unit (CGU) registers. Refer to the Renesas Electronics Corporation's application note for detailed instructions.
  • The maximum current consumption of the M30263F8AFP#U5A is approximately 350mA at 5V and 25°C, but this can vary depending on the operating frequency and peripheral usage.
  • The M30263F8AFP#U5A has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer (WDT) registers. Refer to the datasheet for detailed instructions.
  • The maximum frequency of the M30263F8AFP#U5A's UART is 3.125Mbps, but this can be adjusted using the UART clock divider registers.
