M30280FAWG#U5B - Renesas Electronics

Description: The M16C/28 Group is supported only for customers who have already adopted these products. The RL78/F12, F13, F14, F15 Groups are recommended for new designs.

Download M30280FAWG#U5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30280FAWG#U5B - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

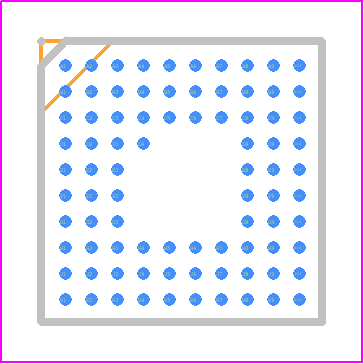

M30280FAWG#U5B - Renesas Electronics PCB footprint - BGA - BGA - PTLG0085JB-A
click to zoom
3D Models
M30280FAWG#U5B - Renesas Electronics - 3D model - BGA - PTLG0085JB-A
click to zoom

M30280FAWG#U5B Details

  • Manufacturer Part Number:

    M30280FAWG#U5B

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TFLGA

  • Pin Count:

    85

  • Manufacturer Package Code:

    PTLG0085JB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Has ADC:

    YES

  • DMA Channels:

    YES

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    71

  • Number of Terminals:

    80

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Speed:

    24 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.2 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30280FAWG#U5B Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M30280FAWG#U5B is -40°C to +85°C.
  • The clock settings for the M30280FAWG#U5B can be configured using the Clock Generator (CG) module. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum clock frequency supported by the M30280FAWG#U5B is 32 MHz.
  • The M30280FAWG#U5B has several low-power modes, including Stop mode, Sleep mode, and Hibernate mode. These modes can be implemented using the Power Management (PM) module. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum current consumption of the M30280FAWG#U5B is approximately 15 mA at 32 MHz operation with all peripherals enabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M30280FAWG#U5B Overview

Use the download button to access the M30280FAWG#U5B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3028, or try a keyword search, such as Microcontrollers
