M30302FAPFP#U5 - Renesas Electronics

Description: The M16C/30P Group is supported only for customers who have already adopted these products. The RX130, RL78/G14 Groups are recommended for new designs.

Download M30302FAPFP#U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30302FAPFP#U5 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

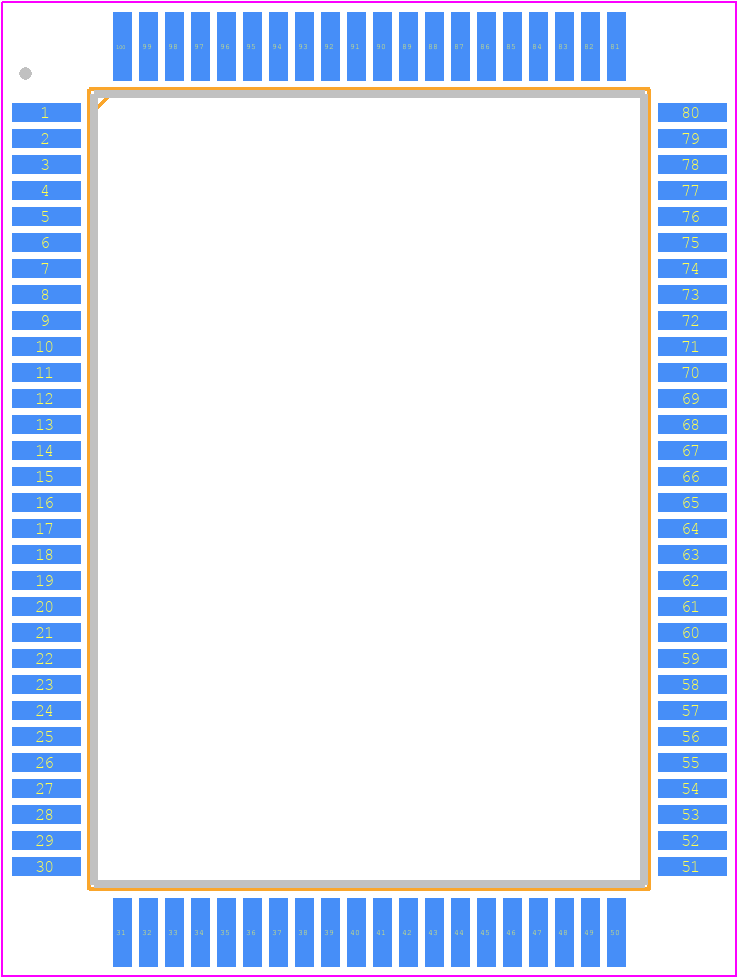

M30302FAPFP#U5 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100JB-A
click to zoom
3D Models
M30302FAPFP#U5 - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0100JB-A
click to zoom

M30302FAPFP#U5 Details

  • Manufacturer Part Number:

    M30302FAPFP#U5

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100JB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    20

  • Bit Size:

    16

  • Clock Frequency-Max:

    16 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    88

  • Number of Terminals:

    100

  • PWM Channels:

    NO

  • Package Code:

    QFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30302FAPFP#U5 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for M30302FAPFP#U5 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for M30302FAPFP#U5 can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and clock configuration options.
  • The maximum clock frequency supported by M30302FAPFP#U5 is 20 MHz, with a maximum CPU clock frequency of 16 MHz.
  • The ADC on M30302FAPFP#U5 can be used by configuring the ADC Control Register (ADCCR), selecting the ADC channel, and starting the ADC conversion. The ADC result can be read from the ADC Result Register (ADCR). Refer to the datasheet for specific register settings and ADC operation details.
  • The watchdog timer on M30302FAPFP#U5 is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the watchdog timer within a specified time period.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M30302FAPFP#U5 Overview

Use the download button to access the M30302FAPFP#U5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3030, or try a keyword search, such as Microcontrollers
