M30624FGPFP#D5C - Renesas Electronics

Description: The M16C/62P Group is supported only for customers who have already adopted these products. The RX130, RX651 Groups are recommended for new designs.

Download M30624FGPFP#D5C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30624FGPFP#D5C - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

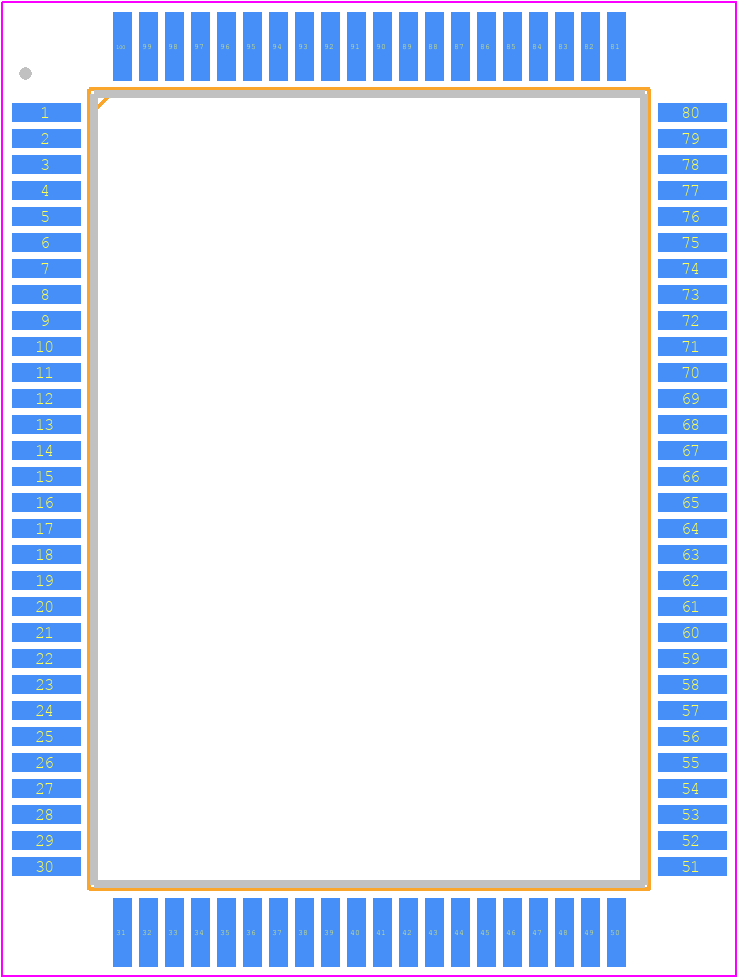

M30624FGPFP#D5C - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100JB-A
click to zoom
3D Models
M30624FGPFP#D5C - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0100JB-A
click to zoom

M30624FGPFP#D5C Details

  • Manufacturer Part Number:

    M30624FGPFP#D5C

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    14 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100JB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 10 MHZ

  • Address Bus Width:

    20

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    M16C

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    R-PQFP-G100

  • Length:

    20 mm

  • Number of I/O Lines:

    88

  • Number of Terminals:

    100

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP100,.7X.9

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    20480

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    3.05 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30624FGPFP#D5C Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M30624FGPFP#D5C is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • The M30624FGPFP#D5C has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control registers. The WDT can be set to reset the device or generate an interrupt if the software fails to refresh the WDT within a specified time period. Refer to the datasheet and application notes for detailed implementation guidelines.
  • The M30624FGPFP#D5C can operate at a maximum clock frequency of 24 MHz, using an external crystal oscillator or a high-speed internal oscillator. However, the actual clock frequency may vary depending on the specific application and system requirements.
  • The M30624FGPFP#D5C has multiple UART interfaces that can be configured using the UART control registers. The configuration involves setting the baud rate, data bits, parity, and stop bits, as well as enabling or disabling the UART transmitter and receiver. Refer to the datasheet and application notes for detailed configuration guidelines.
  • The power consumption of the M30624FGPFP#D5C in sleep mode depends on the specific sleep mode and the configuration of the device. In general, the sleep mode power consumption can be as low as 1 μA, but this value may vary depending on the application and system requirements. Refer to the datasheet and application notes for detailed power consumption specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M30624FGPFP#D5C Overview

Use the download button to access the M30624FGPFP#D5C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3062, or try a keyword search, such as Microcontrollers
