M30853FHFP#U5 - Renesas Electronics

Description: M32C/80 M16C™ M32C/80/85 Microcontroller IC 16/32-Bit 32MHz 384KB (384K x 8) FLASH 100-QFP (14x20)

Download M30853FHFP#U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30853FHFP#U5 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

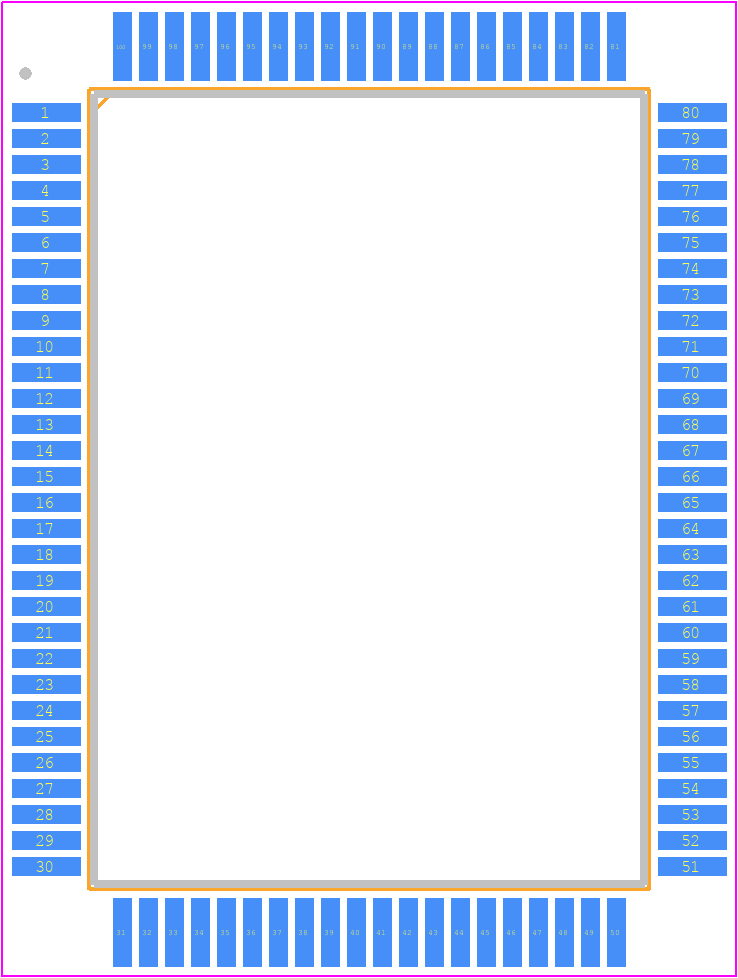

M30853FHFP#U5 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100JB-A_2023
click to zoom
3D Models
M30853FHFP#U5 - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0100JB-A_2023
click to zoom

M30853FHFP#U5 Details

  • Manufacturer Part Number:

    M30853FHFP#U5

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    QFP-100

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Length:

    6 mm

  • Number of I/O Lines:

    88

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30853FHFP#U5 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M30853FHFP#U5 is -40°C to +85°C.
  • The clock settings for the M30853FHFP#U5 can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and configuration options.
  • The maximum clock frequency supported by the M30853FHFP#U5 is 24 MHz.
  • The ADC on the M30853FHFP#U5 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register settings and configuration options.
  • The power consumption of the M30853FHFP#U5 in sleep mode is typically around 10 μA.
