M38239GCFP#U0 - Renesas Electronics

Description: The 3823 Group is supported only for customers who have already adopted these products.

Download M38239GCFP#U0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M38239GCFP#U0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

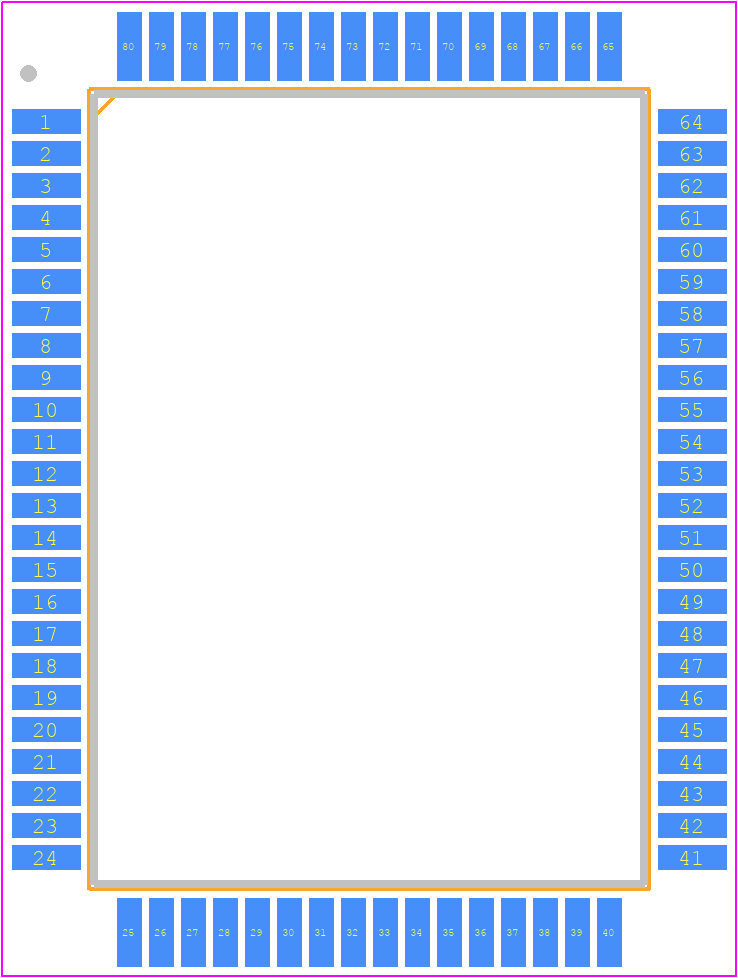

M38239GCFP#U0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0080GB-A
click to zoom
3D Models
M38239GCFP#U0 - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0080GB-A
click to zoom

M38239GCFP#U0 Details

  • Manufacturer Part Number:

    M38239GCFP#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    80

  • Manufacturer Package Code:

    PRQP0080GB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Technology:

    CMOS

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M38239GCFP#U0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M38239GCFP#U0 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the M38239GCFP#U0 can be configured using the Clock Generator Unit (CGU) and the Clock Control Unit (CCU). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum clock frequency supported by the M38239GCFP#U0 is 24 MHz.
  • The M38239GCFP#U0 has several low-power modes, including Stop mode, Sleep mode, and Hibernate mode. These modes can be implemented using the Power Management Unit (PMU) and the Clock Control Unit (CCU). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The M38239GCFP#U0 has 256 KB of ROM and 16 KB of RAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M38239GCFP#U0 Overview

Use the download button to access the M38239GCFP#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3823, or try a keyword search, such as Microcontrollers
