M39014/01-1339 - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded CKR05BX101KS 200 VDC 100 pF - 55 C+ 125 C

Download M39014/01-1339 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M39014/01-1339 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

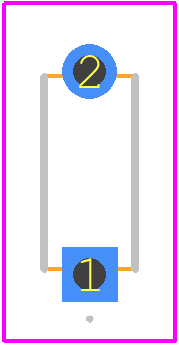

M39014/01-1339 - Kyocera AVX PCB footprint - Other - Other - M39014/01-1339-4
click to zoom
3D Models
M39014/01-1339 - Kyocera AVX - 3D model - Other - M39014/01-1339-4
click to zoom

M39014/01-1339 Details

  • Manufacturer Part Number:

    M39014/01-1339

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    5

  • Capacitance:

    0.0001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4.83 mm

  • JESD-609 Code:

    e0

  • Length:

    4.83 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    200 V

  • Reference Standard:

    MIL-PRF-39014/01

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    BX

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    TIN LEAD

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    2.29 mm

M39014/01-1339 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for M39014/01-1339 is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.
  • Yes, M39014/01-1339 is compatible with lead-free soldering. It meets the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The maximum operating voltage for M39014/01-1339 is 100V DC. Exceeding this voltage may result in reduced reliability or even failure of the component.
  • Yes, M39014/01-1339 is suitable for use in high-frequency applications up to 100 MHz. However, it's essential to consider the component's self-resonant frequency and impedance characteristics when designing high-frequency circuits.
  • The moisture sensitivity level (MSL) of M39014/01-1339 is MSL 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C (86°F) and 60% relative humidity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M39014/01-1339 Overview

Use the download button to access the M39014/01-1339 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3901, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
