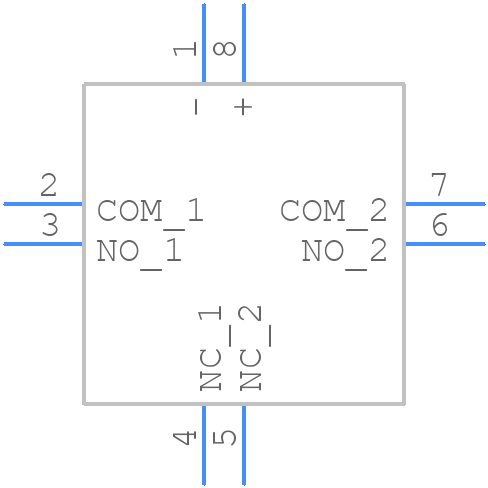

M39016/15-033L Details

• Manufacturer Part Number:

  M39016/15-033L

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  33 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.85

• Additional Feature:

  WITH COIL SUPPRESSED DIODE

• Body Height:

  7.11 mm

• Body Length or Diameter:

  9.4 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  14.2 V

• Coil Power:

  450 mW

• Coil Release Voltage(DC):

  1.37 V

• Coil Resistance:

  1560 Ω

• Coil Voltage(DC)-Max:

  26.5 V

• Coil Voltage-Nom:

  26.5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  .1A@115VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Voltage(AC)-Max:

  28 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  3.5 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Physical Dimension:

  9.4mm x 7.11mm

• Reference Standard:

  MIL-PRF-39016/15

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT-CO

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5.5 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.038001016002032005 inch

• Termination Type:

  SOLDER/QUICK CONNECT
