M39016/19-036P footprint, schematic symbol and 3D model by TE Connectivity

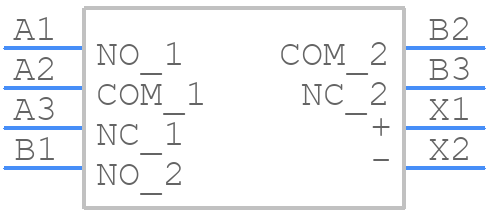

Symbol

click to zoom

PCB Footprints

M39016/19-036P - TE Connectivity PCB footprint - Other - Other - M39016/19-036P-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M39016/19-036P
Part Number M39016/19-036P
Manufacturer TE Connectivity
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M39016/19-036P-1
Released Date Jun 14, 2024
Last Modified Date Jun 14, 2024 8:24 AM UTC
Pinout / Pin List Click Here (Member Only)

M39016/19-036P Details

Manufacturer Part Number:
M39016/19-036P
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
18 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
6
Coil Power:
450 mW
Coil Resistance:
1560 Ω
Coil Voltage(DC)-Max:
26.5 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
1 A
Contact Current(DC)-Max:
1 A
Contact Voltage(AC)-Max:
28 V
Contact Voltage(DC)-Max:
28 V
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Relay Type:
POWER/SIGNAL RELAY
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Termination Type:
SOLDER/QUICK CONNECT

M39016/19-036P Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M39016/19-036P connector, but it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
Yes, the M39016/19-036P connector is designed to meet the requirements of MIL-DTL-39016, which includes vibration testing. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific vibration requirements of your application.
The M39016/19-036P connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand humid environments. However, it's crucial to consult TE Connectivity's documentation and perform environmental testing to ensure the connector meets the specific requirements of your application.
The M39016/19-036P connector is designed to withstand a minimum of 500 mating cycles, but this can vary depending on the specific application and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's mating cycle life in your specific application.
Yes, the M39016/19-036P connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.

Trust Checks

Community Provided

System Verified

Community Approved

M39016/19-036P Overview

Use the download button to access the M39016/19-036P schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M3901, or try a keyword search, such as Power/Signal Relays
