M39016/44-035M - TE Connectivity

Description: Half-Size Relays, 2 Form C, DPDT, 2 C/O, 26.5 VDC Input, 2 A, 26.5 VDC Coil Voltage, 1030 Ω Coil Resistance, 682 mW Coil Power (DC)

Download M39016/44-035M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

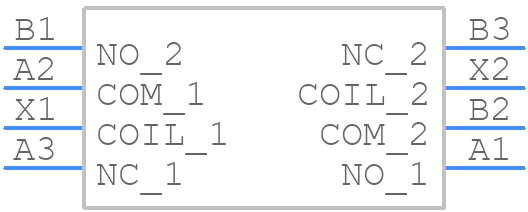

M39016/44-035M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
M39016/44-035M - TE Connectivity PCB footprint - Other - Other - M39016/44-035M-5
click to zoom
3D Models
M39016/44-035M - TE Connectivity - 3D model - Other - M39016/44-035M-5
click to zoom

M39016/44-035M Details

  • Manufacturer Part Number:

    M39016/44-035M

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    33 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Coil Power:

    682 mW

  • Coil Resistance:

    1030 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    RF RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
