M39016/6-105M footprint, schematic symbol and 3D model by TE Connectivity

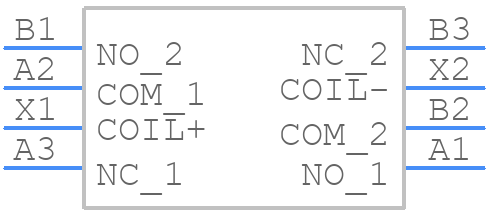

Symbol

click to zoom

PCB Footprints

M39016/6-105M - TE Connectivity PCB footprint - Other - Other - M39016/6-105M-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M39016/6-105M
Part Number M39016/6-105M
Manufacturer TE Connectivity
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M39016/6-105M-2
Released Date Oct 27, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

M39016/6-105M Details

Manufacturer Part Number:
M39016/6-105M
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
33 Weeks, 2 Days
Manufacturer:
TE Connectivity
Body Breadth:
10.41 mm
Body Height:
10.41 mm
Body Length or Diameter:
20.57 mm
Coil Operate Voltage(DC):
13.5 V
Coil Power:
1003 mW
Coil Release Voltage(DC):
8 V
Coil Resistance:
700 Ω
Coil Voltage(DC)-Max:
26.5 V
Coil Voltage-Nom:
26.5 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
2 A
Contact Current(DC)-Max:
2 A
Contact (DC) Max Rating R Load:
2A@28VDC
Contact Voltage(DC)-Max:
28 V
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
PANEL MOUNT
Number of Terminals:
8
Operate Time:
4 ms
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Physical Dimension:
20.57mm x 10.41mm x 10.41mm
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Release Time:
4 ms
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Terminal Length:
0.004699009398018796 inch
Termination Type:
SOLDER

M39016/6-105M Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M39016/6-105M connector, as specified in the TE Connectivity application note.
Yes, the M39016/6-105M connector is designed to meet the requirements of high-vibration applications, such as those found in aerospace and defense systems. It has a ruggedized design and is tested to withstand vibration levels up to 20 Gs.
Yes, the M39016/6-105M connector is designed to operate in harsh environments, including high-temperature (up to 200°C) and high-humidity (up to 95% RH) applications. However, it's essential to follow the recommended derating guidelines and environmental testing procedures to ensure reliable performance.
The M39016/6-105M connector has a mating cycle life of 500 cycles minimum, as specified in the TE Connectivity datasheet. However, this can vary depending on the application, usage, and environmental conditions.
Yes, the M39016/6-105M connector is part of the TE Connectivity M39016 series, which is designed to be compatible with other connectors in the same series. However, it's essential to verify compatibility with specific connectors and applications to ensure reliable performance.

Trust Checks

Community Provided

System Verified

Community Approved

M39016/6-105M Overview

Use the download button to access the M39016/6-105M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M3901, or try a keyword search, such as Other Relays
