M39016/6-109M - TE Connectivity

Description: General Purpose Relays 26.5V 2A 2 Form C (DPDT) 2 CO

Download M39016/6-109M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

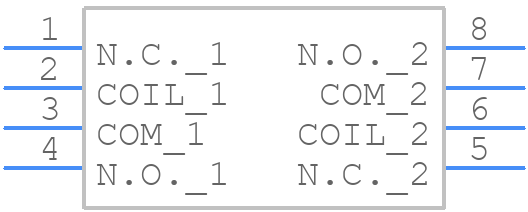

Symbol
M39016/6-109M - TE Connectivity - PCB symbol
click to zoom

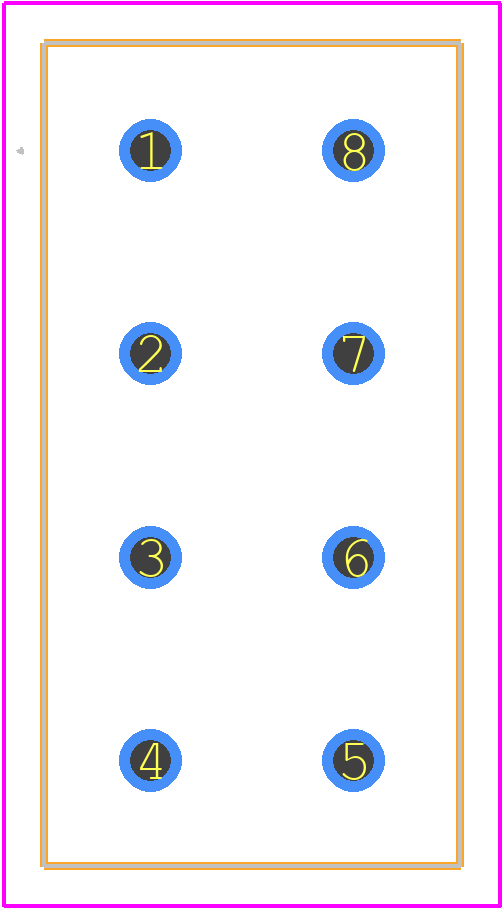

PCB Footprints
M39016/6-109M - TE Connectivity PCB footprint - Other - Other - M39016/6-109M-2
click to zoom
3D Models
M39016/6-109M - TE Connectivity - 3D model - Other - M39016/6-109M-2
click to zoom

M39016/6-109M Details

  • Manufacturer Part Number:

    M39016/6-109M

  • Brand Name:

    CII

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    33 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.85

  • Body Breadth:

    10.41 mm

  • Body Height:

    10.414 mm

  • Body Length or Diameter:

    20.57 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Operate Voltage(DC):

    13.5 V

  • Coil Power:

    1003 mW

  • Coil Release Voltage(DC):

    1.5 V

  • Coil Resistance:

    700 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil Voltage-Nom:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    0.3A@115VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@28VDC

  • Contact Resistance:

    1000 mΩ

  • Contact Voltage(AC)-Max:

    115 V

  • Contact Voltage(DC)-Max:

    28 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    10000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    8

  • Operate Time:

    6.5 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Physical Dimension:

    20.57mm x 10.41mm x 10.41mm

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    6.5 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Length:

    0.005001270002540005 inch

  • Termination Type:

    SOLDER

M39016/6-109M Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M39016/6-109M connector, but it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the M39016/6-109M connector is designed to withstand high-vibration environments, making it suitable for aerospace, defense, and other applications where vibration is a concern.
  • Yes, the M39016/6-109M connector is designed to operate in harsh environments, including high temperatures (up to 200°C) and high humidity. However, it's essential to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and limitations.
  • The M39016/6-109M connector has a mating cycle life of 500 cycles minimum, but this can vary depending on the specific application and usage. It's recommended to consult TE Connectivity's documentation for more information.
  • The M39016/6-109M connector is designed to be compatible with other TE Connectivity products, but compatibility with third-party connectors should be verified through testing and validation. It's recommended to consult TE Connectivity's documentation and application notes for more information.
