M39016/6-116P footprint, schematic symbol and 3D model by TE Connectivity

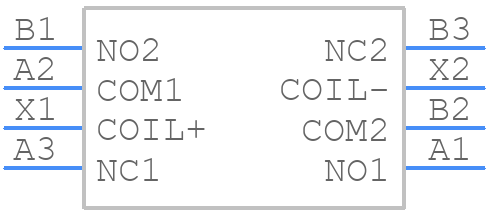

Symbol

click to zoom

PCB Footprints

M39016/6-116P - TE Connectivity PCB footprint - Other - Other - M39016/6-116P-1

click to zoom

3D Models

M39016/6-116P - TE Connectivity - 3D model - Other - M39016/6-116P-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M39016/6-116P
Part Number M39016/6-116P
Manufacturer TE Connectivity
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M39016/6-116P-1
Released Date Feb 13, 2025
Last Modified Date Feb 22, 2025 5:24 AM UTC
Pinout / Pin List Click Here (Member Only)

M39016/6-116P Details

Manufacturer Part Number:
M39016/6-116P
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
33 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7.51
Body Breadth:
10.41 mm
Body Height:
10.41 mm
Body Length or Diameter:
20.57 mm
Coil Current(DC)-Max:
0.075 A
Coil Operate Voltage(DC):
6.4 V
Coil Power:
900 mW
Coil Release Voltage(DC):
0.7 V
Coil Resistance:
160 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
2 A
Contact Current(DC)-Max:
2 A
Contact (DC) Max Rating R Load:
2A@28VDC
Contact Voltage(DC)-Max:
28 V
Contact/Output Supply Type:
DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
PANEL MOUNT
Operate Time:
4 ms
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Physical Dimension:
20.57mm x 10.41mm x 10.41mm
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Termination Type:
SOLDER

M39016/6-116P Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M39016/6-116P connector, as specified in the TE Connectivity application note.
Yes, the M39016/6-116P connector is designed to meet the requirements of high-vibration applications, such as those found in aerospace and defense systems, with a vibration rating of 10-2000 Hz, 20 G peak.
Yes, the M39016/6-116P connector is designed to operate in harsh environments, with a temperature range of -65°C to 200°C and a humidity rating of 95% RH at 40°C.
The M39016/6-116P connector has a mating cycle life of 500 cycles, as specified in the TE Connectivity datasheet.
Yes, the M39016/6-116P connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.
