M3SWA-2-50DRA+ - Mini-Circuits

Description: Fast switching SPDT RF Switch

Download M3SWA-2-50DRA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

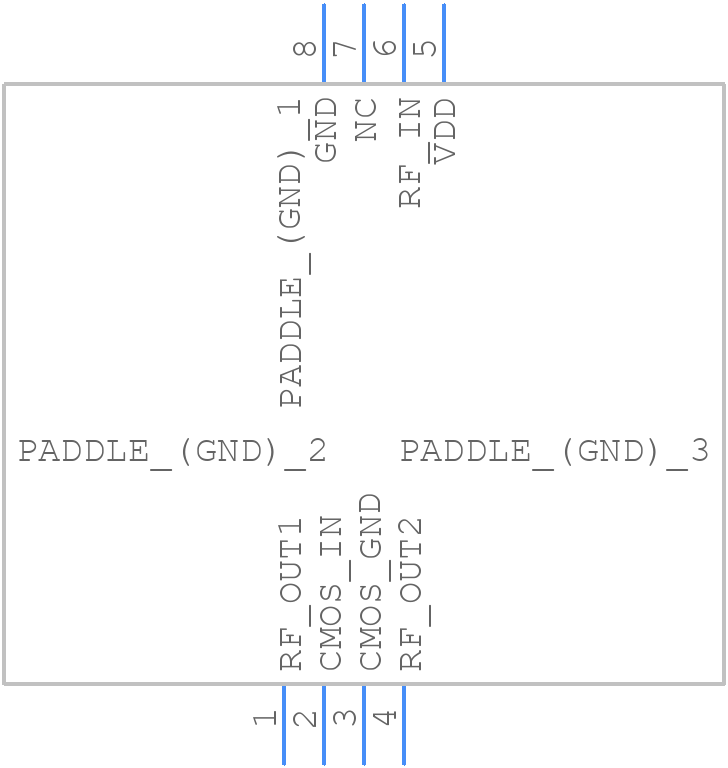

Symbol
M3SWA-2-50DRA+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
M3SWA-2-50DRA+ - Mini-Circuits PCB footprint - Other - Other - DL805
click to zoom
3D Models
M3SWA-2-50DRA+ - Mini-Circuits - 3D model - Other - DL805
click to zoom

M3SWA-2-50DRA+ Details

  • Manufacturer Part Number:

    M3SWA-2-50DRA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.8

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Operating Frequency-Max:

    4500 MHz

  • Operating Frequency-Min:

    0.3 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPDT

  • VSWR-Max:

    1.13

M3SWA-2-50DRA+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt components. Mini-Circuits provides a matching network design guide in their application notes, which can help you design an optimal matching network for your specific application.
  • The maximum power handling of the M3SWA-2-50DRA+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 2W of continuous power. It's essential to derate the power handling based on the operating frequency and environmental conditions.
  • Yes, the M3SWA-2-50DRA+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and is screened to ensure high reliability. However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets the specific requirements of your application.
  • Mini-Circuits provides a troubleshooting guide in their application notes, which covers common issues and their solutions. It's essential to follow a systematic approach to troubleshooting, starting with the simplest possible causes and working your way up to more complex issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M3SWA-2-50DRA+ Overview

Use the download button to access the M3SWA-2-50DRA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3SWA, or try a keyword search, such as RF/Microwave Switches

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
