M3SWA-2-50DRB+ - Mini-Circuits

Description: RF Switch ICs Absorptive SPDT, SMT Solid State Switch, DC - 4500 MHz, 50 ohms

Download M3SWA-2-50DRB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

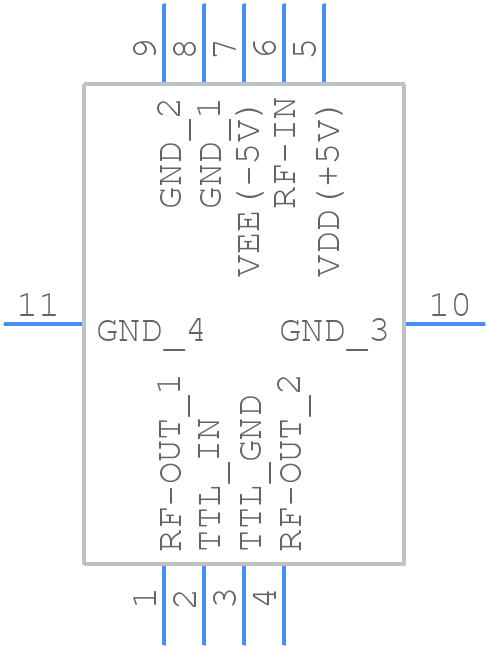

Symbol
M3SWA-2-50DRB+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
M3SWA-2-50DRB+ - Mini-Circuits PCB footprint - Other - Other - M3SWA-2-50DRB+-4
click to zoom
3D Models
M3SWA-2-50DRB+ - Mini-Circuits - 3D model - Other - M3SWA-2-50DRB+-4
click to zoom

M3SWA-2-50DRB+ Details

  • Manufacturer Part Number:

    M3SWA-2-50DRB+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-12-12

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.3

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Operating Frequency-Max:

    4500 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • VSWR-Max:

    1.07

M3SWA-2-50DRB+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt components. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required component values for optimal matching.
  • The maximum power handling of the M3SWA-2-50DRB+ is 2W. Exceeding this power rating can cause damage to the device. It's essential to ensure that the input power is within the specified range to maintain reliability and performance.
  • Mini-Circuits provides a troubleshooting guide on their website, which covers common issues and their solutions. Additionally, engineers can use standard RF troubleshooting techniques, such as checking for impedance mismatches, signal reflections, and component failures.
  • Yes, the M3SWA-2-50DRB+ is designed for high-reliability applications. Mini-Circuits uses a rigorous testing and screening process to ensure that their devices meet the highest standards of quality and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M3SWA-2-50DRB+ Overview

Use the download button to access the M3SWA-2-50DRB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3SWA, or try a keyword search, such as RF/Microwave Switches

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
