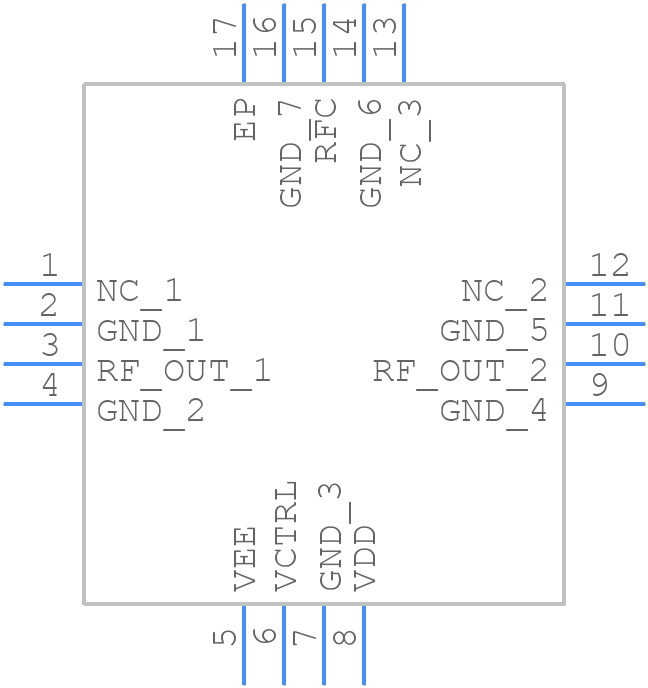

M3SWA2-34DR+ footprint, schematic symbol and 3D model by Mini-Circuits

Symbol

click to zoom

PCB Footprints

M3SWA2-34DR+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M3SWA2-34DR+
Part Number M3SWA2-34DR+
Manufacturer Mini-Circuits
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN-16
Released Date May 10, 2024
Last Modified Date May 10, 2024 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

M3SWA2-34DR+ Details

Manufacturer Part Number:
M3SWA2-34DR+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Mini-Circuits
YTEOL:
8
1dB Compression Point:
19 dBm
Additional Feature:
HIGH LINEARITY AND ISOLATION
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
24 dBm
Isolation-Min:
41 dB
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
16
On Time-Nom:
0.023 µs
Operating Frequency-Max:
30000 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC16,.12SQ,20
Port Termination:
ABSORPTIVE
Power Supplies:
+/-3.3 V
RF/Microwave Device Type:
SPDT
Screening Level:
MIL-STD-202; MIL-STD-883
Supply Current-Max:
2.9 mA
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)
VSWR-Max:
1.13

M3SWA2-34DR+ Frequently Asked Questions (FAQs)

Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
The M3SWA2-34DR+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat dissipation through a heat sink, thermal vias, or a thermally conductive PCB material. A thermal analysis or simulation can help determine the optimal thermal management strategy.
While the M3SWA2-34DR+ is specified for operation up to 4 GHz, it's possible to operate it beyond this range. However, the device's performance, including insertion loss, isolation, and return loss, may degrade significantly. It's essential to characterize the device's behavior beyond the specified frequency range through simulation or measurement.
To ensure reliability and longevity, it's essential to follow Mini-Circuits' recommended storage and handling procedures, as well as operate the device within its specified temperature and humidity ranges. Additionally, consider implementing protective measures such as conformal coating, potting, or hermetic sealing to protect the device from environmental stressors.
Potential sources of EMI include the device's internal switching, PCB layout, and external radiation. To mitigate EMI, use proper PCB layout techniques, such as grounding, shielding, and decoupling. Additionally, consider using EMI filters, absorbers, or shielding materials to reduce radiation and coupling.
