M402VF-3-016-02NR - Harwin

Description: 0.5mm Pitch: 8+8 Pos Receptacle DIL Straight SMT Connector, 2mm high (T+R)

Download M402VF-3-016-02NR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

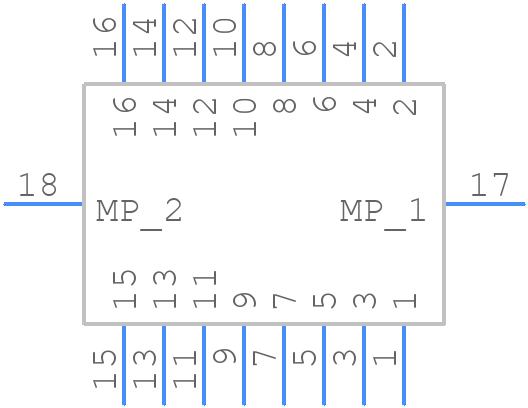

Symbol
M402VF-3-016-02NR - Harwin - PCB symbol
click to zoom
PCB Footprints
M402VF-3-016-02NR - Harwin PCB footprint - Other - Other - M402VF-3-016-02NR-4
click to zoom
3D Models
M402VF-3-016-02NR - Harwin - 3D model - Other - M402VF-3-016-02NR-4
click to zoom

M402VF-3-016-02NR Details

  • Manufacturer Part Number:

    M402VF-3-016-02NR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8.15

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.189 inch

  • Body Depth:

    0.079 inch

  • Body Length:

    0.335 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    90 mΩ

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .8896 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.8768 mm

  • Plating Thickness:

    51u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .973 N

M402VF-3-016-02NR Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
  • Yes, the M402VF-3-016-02NR connector is designed to withstand vibrations and is suitable for use in high-vibration applications. The connector's screw-lock mechanism and rugged design ensure reliable connections even in harsh environments.
  • The M402VF-3-016-02NR connector has an operating temperature range of -40°C to +125°C. While it can withstand high temperatures, it's crucial to consider the specific application requirements and ensure the connector is used within its rated temperature range to maintain reliability and performance.
  • The M402VF-3-016-02NR connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and used in accordance with the manufacturer's recommendations to maintain its environmental rating.
  • The M402VF-3-016-02NR connector has a mating cycle life of 500 cycles, as specified in the Harwin datasheet. This means the connector can withstand 500 mating and unmating cycles without compromising its performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M402VF-3-016-02NR Overview

Use the download button to access the M402VF-3-016-02NR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M402V, or try a keyword search, such as Headers and Edge Type Connectors
