M41ST85WMX6 - STMicroelectronics

Description: 3.0/3.3 V I²C combination serial RTC, NVRAM supervisor and microprocessor supervisor

Download M41ST85WMX6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

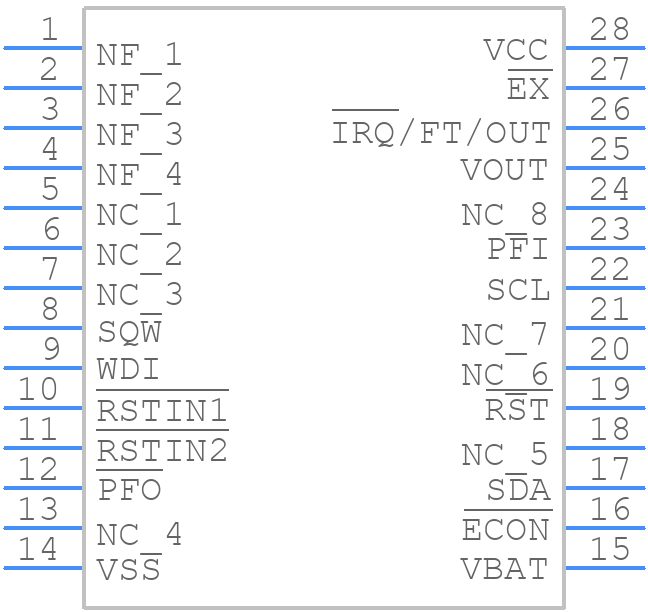

M41ST85WMX6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M41ST85WMX6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOX28
click to zoom
3D Models
M41ST85WMX6 - STMicroelectronics - 3D model - Small Outline Packages - SOX28
click to zoom

M41ST85WMX6 Details

  • Manufacturer Part Number:

    M41ST85WMX6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C), SERIAL, 2-WIRE

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.96 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.69 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    1/100 SECOND

  • Volatile:

    NO

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

M41ST85WMX6 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the M41ST85WMX6 is 32.768 kHz, which is a standard frequency for real-time clock (RTC) applications.
  • To ensure the accuracy of the RTC, it is recommended to use a high-quality crystal oscillator, maintain a stable power supply, and minimize temperature variations. Additionally, the device should be calibrated periodically to compensate for any deviations.
  • The M41ST85WMX6 can operate over a temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and consumer applications.
  • The M41ST85WMX6 can be interfaced with a microcontroller using a serial interface such as I2C or SPI. The device provides a 2-wire or 4-wire interface, depending on the configuration, and can operate at clock frequencies up to 400 kHz.
  • The M41ST85WMX6 has a low power consumption of typically 1.5 μA in battery-backed mode, making it suitable for battery-powered applications. The device also has a programmable power-down mode to further reduce power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M41ST85WMX6 Overview

Use the download button to access the M41ST85WMX6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M41ST, or try a keyword search, such as Timers or RTCs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
