M41T56MH6E - STMicroelectronics

M41T56MH6E Details

• Manufacturer Part Number:

  M41T56MH6E

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

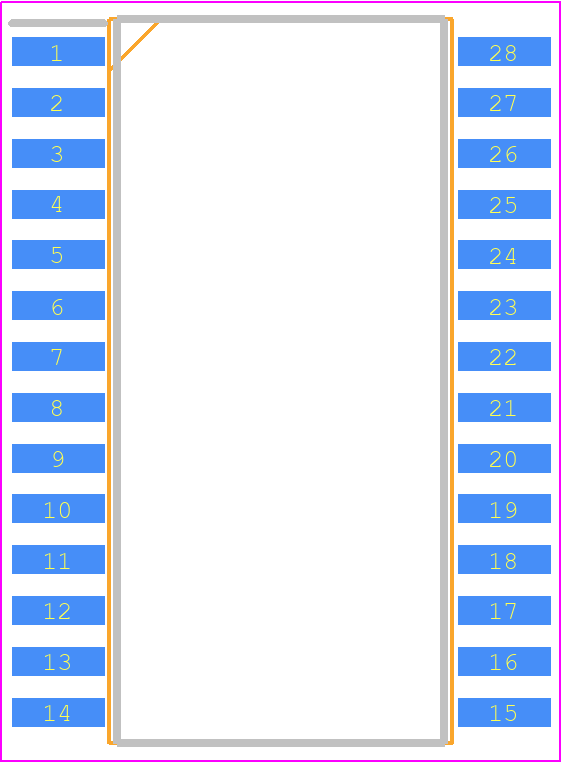

• Part Package Code:

  SOIC

• Package Description:

  0.330 INCH, LEAD FREE, PLASTIC, SOIC-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Clock Frequency-Max:

  0.032 MHz

• Information Access Method:

  SERIAL(I2C), SERIAL, 2-WIRE

• Interrupt Capability:

  N

• JESD-30 Code:

  R-PDSO-G28

• Length:

  18.1 mm

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.5

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.05 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time-Min:

  SECONDS

• Time@Peak Reflow Temperature-Max (s):

  10

• Volatile:

  NO

• Width:

  8.56 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
