M41T83ZMY6E - STMicroelectronics

Description: Serial I2C bus real-time clock (RTC) with battery switchover

Download M41T83ZMY6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

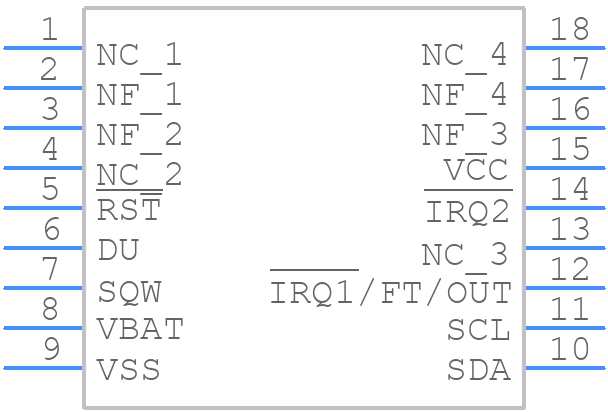

M41T83ZMY6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M41T83ZMY6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - sox-18
click to zoom
3D Models
M41T83ZMY6E - STMicroelectronics - 3D model - Small Outline Packages - sox-18
click to zoom

M41T83ZMY6E Details

  • Manufacturer Part Number:

    M41T83ZMY6E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C), SERIAL, 2-WIRE

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.61 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.69 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.38 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    1/100 SECOND

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

M41T83ZMY6E Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the crystal oscillator circuit can be found in the STMicroelectronics application note AN2860, which provides guidelines for designing a reliable and stable oscillator circuit.
  • To ensure the accuracy of the RTC when the battery is replaced, it is recommended to use a battery with a low self-discharge rate and to follow the recommended battery replacement procedure outlined in the datasheet. Additionally, the RTC can be reset to a known state after battery replacement to ensure accuracy.
  • The maximum operating temperature range for the M41T83ZMY6E is -40°C to +85°C, as specified in the datasheet. However, it is recommended to operate the device within the recommended temperature range of 0°C to +70°C for optimal performance and accuracy.
  • The M41T83ZMY6E can be interfaced with a microcontroller using a serial communication protocol such as I2C or SPI. The datasheet provides detailed information on the communication protocol and pin assignments. Additionally, STMicroelectronics provides example code and application notes for popular microcontrollers.
  • The typical current consumption of the M41T83ZMY6E is around 350 nA in timekeeping mode and 1.5 mA in programming mode, as specified in the datasheet. However, the actual current consumption may vary depending on the operating conditions and the specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M41T83ZMY6E Overview

Use the download button to access the M41T83ZMY6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M41T8, or try a keyword search, such as Timers or RTCs
