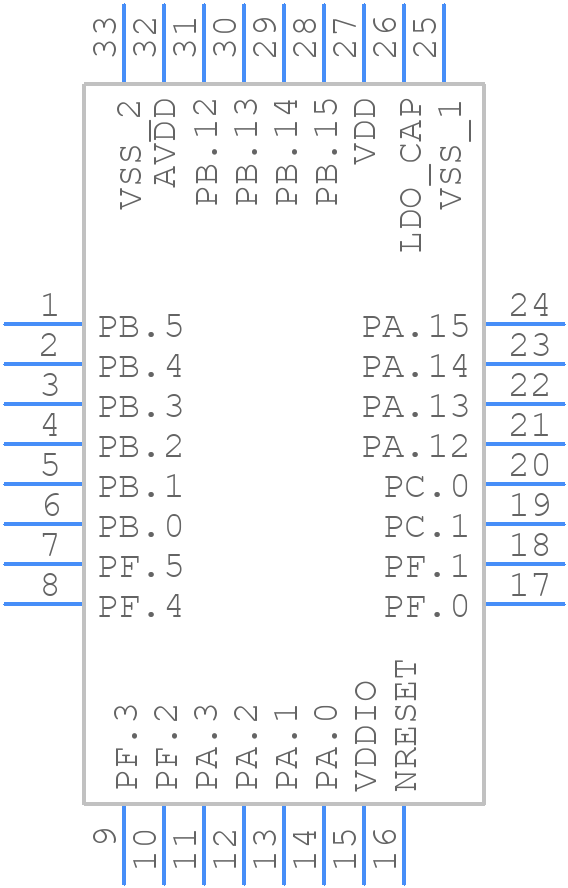

M481ZE8AE footprint, schematic symbol and 3D model by Nuvoton

Symbol

click to zoom

PCB Footprints

M481ZE8AE - Nuvoton PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 33L (5x5x0.8 mm3 Pitch 0.5 mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M481ZE8AE
Part Number M481ZE8AE
Manufacturer Nuvoton
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN 33L (5x5x0.8 mm3 Pitch 0.5 mm)
Released Date Sep 3, 2026
Last Modified Date Sep 3, 2026 6:09 AM UTC
Pinout / Pin List Click Here (Member Only)

M481ZE8AE Details

Manufacturer Part Number:
M481ZE8AE
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.31.00.30
Date Of Intro:
2019-11-20
Manufacturer:
Nuvoton Technology Corp
YTEOL:
7.42
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
30
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC

M481ZE8AE Frequently Asked Questions (FAQs)

The maximum operating frequency of the M481ZE8AE is 80 MHz.
The M481ZE8AE has 64 KB of flash memory.
The maximum ambient operating temperature range of the M481ZE8AE is -40°C to 85°C.
Yes, the M481ZE8AE supports USB 2.0 Full-Speed.
The power consumption of the M481ZE8AE in sleep mode is typically around 10 μA.

Trust Checks

Community Provided

System Verified

Community Approved

M481ZE8AE Overview

Use the download button to access the M481ZE8AE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M481Z, or try a keyword search, such as Microcontrollers
