M48T35Y-70MH1E - STMicroelectronics

Description: 5 V, 256 Kbit (32 Kb x 8) TIMEKEEPER® SRAM

Download M48T35Y-70MH1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

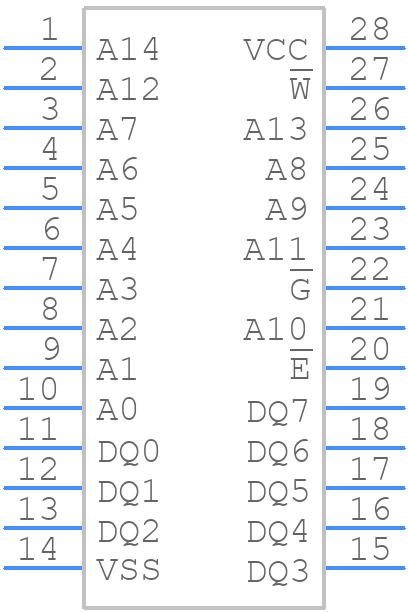

M48T35Y-70MH1E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

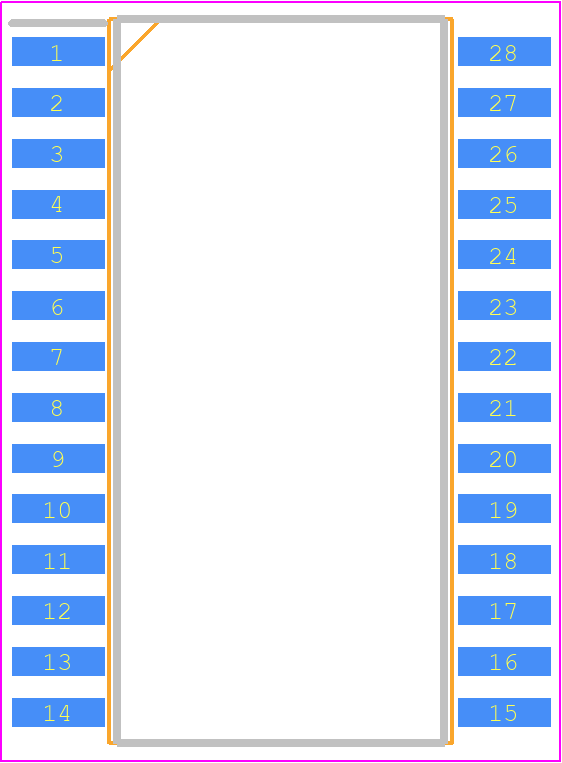

M48T35Y-70MH1E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH28
click to zoom
3D Models
M48T35Y-70MH1E - STMicroelectronics - 3D model - Small Outline Packages - SOH28
click to zoom

M48T35Y-70MH1E Details

  • Manufacturer Part Number:

    M48T35Y-70MH1E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Memory IC Type:

    STANDARD SRAM

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

M48T35Y-70MH1E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M48T35Y-70MH1E is 2.7V to 3.6V.
  • To ensure data integrity during power-down or power-up sequences, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized before accessing the memory.
  • The maximum clock frequency supported by the M48T35Y-70MH1E is 1 MHz.
  • In case the device is not responding or is stuck in a reset state, try power-cycling the device or performing a hardware reset. If the issue persists, check the device's connections, power supply, and clock signals for any issues.
  • The recommended storage temperature range for the M48T35Y-70MH1E is -40°C to +125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T35Y-70MH1E Overview

Use the download button to access the M48T35Y-70MH1E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T3, or try a keyword search, such as SRAMs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
