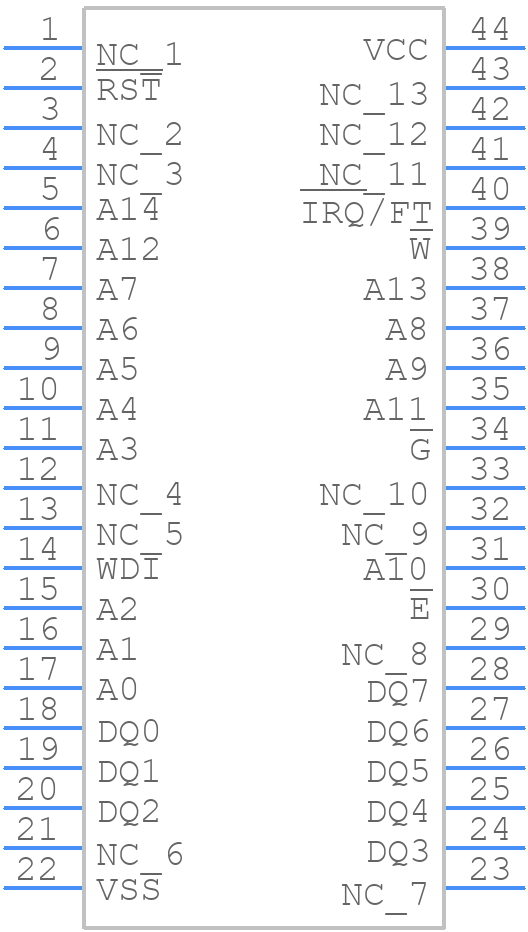

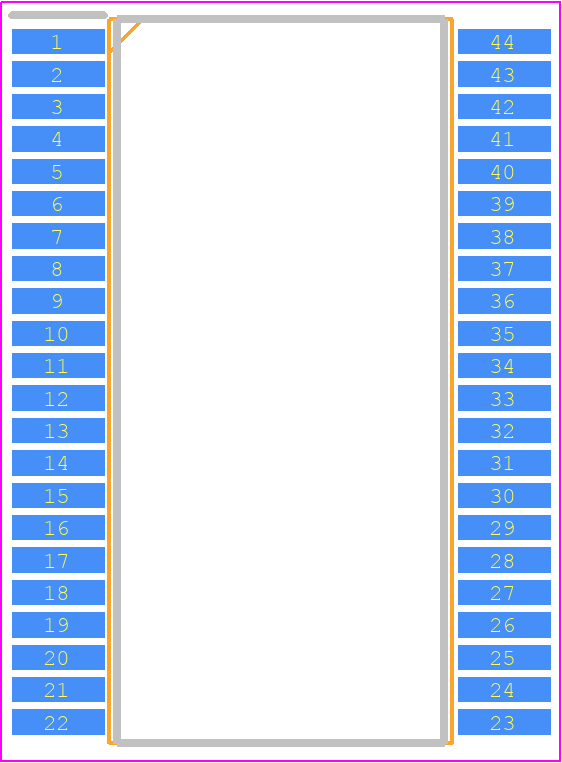

M48T37V-10MH1E - STMicroelectronics

M48T37V-10MH1E Frequently Asked Questions (FAQs)

• What is the maximum operating temperature range for this device?
  The M48T37V-10MH1E can operate from -40°C to +85°C, but it's recommended to use it within the -20°C to +70°C range for optimal performance.
• How do I handle the power-on reset (POR) and voltage supervisor (VS) functions?
  The POR and VS functions are internally connected and cannot be separated. The VS function monitors the VCC voltage and asserts a reset signal when VCC falls below the minimum operating voltage. The POR function ensures that the device is properly reset during power-up.
• What is the recommended crystal oscillator configuration for this device?
  The M48T37V-10MH1E requires a 32.768 kHz crystal oscillator with a maximum ESR of 30 kΩ and a load capacitance of 6-10 pF. The crystal should be connected between the X1 and X2 pins, and the oscillator circuit should be designed according to the datasheet recommendations.
• How do I ensure data integrity and prevent data corruption during power-down or brownout conditions?
  The M48T37V-10MH1E has a built-in power-down detection circuit that automatically switches the device to a low-power mode when VCC falls below the minimum operating voltage. To ensure data integrity, it's recommended to use a voltage supervisor or a power-down detector to generate a reset signal and prevent data corruption.
• What is the maximum clock frequency that can be used with this device?
  The M48T37V-10MH1E can operate with a maximum clock frequency of 1 MHz, but it's recommended to use a clock frequency of 32.768 kHz for optimal performance and power consumption.
