M48T37Y-70MH1E - STMicroelectronics

Description: M48T37Y-70MH1E, Real Time Clock, Alarm, Calendar, Clock, Watchdog Timer, 32768B RAM, Parallel, 4.5 , 5.5 V

Download M48T37Y-70MH1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

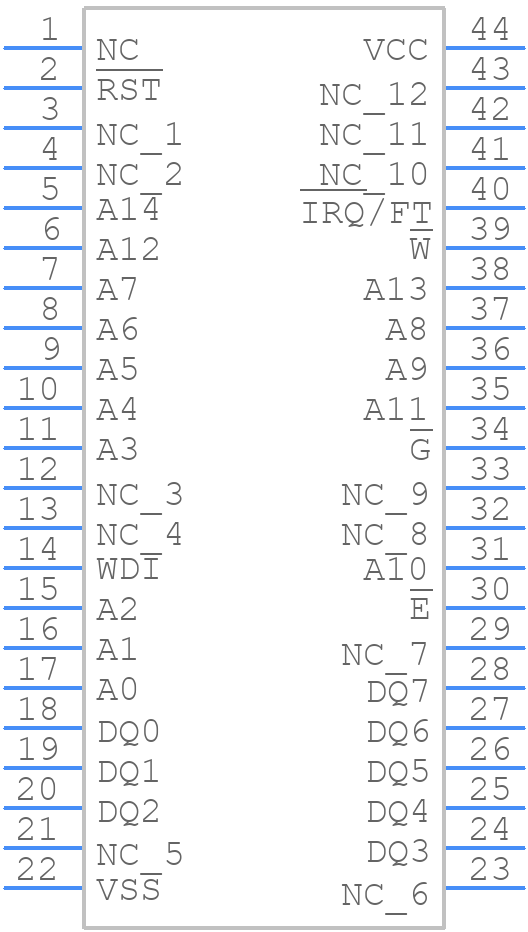

M48T37Y-70MH1E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

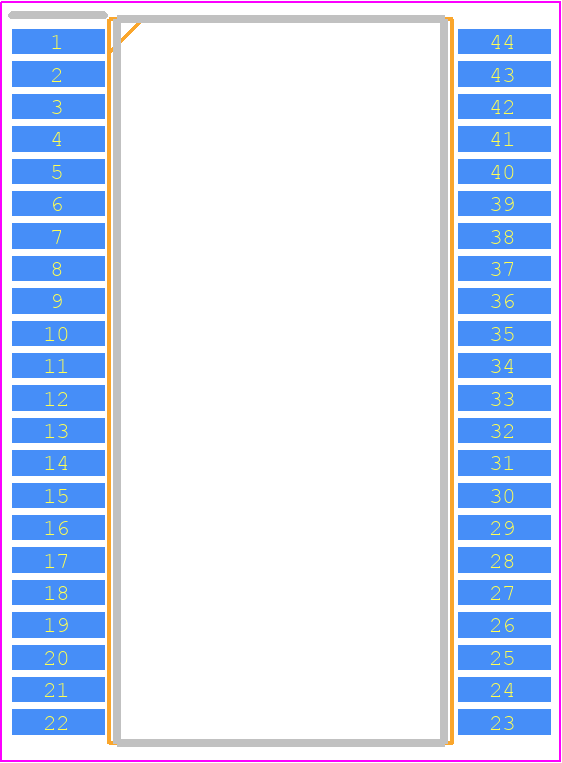

M48T37Y-70MH1E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH44
click to zoom
3D Models
M48T37Y-70MH1E - STMicroelectronics - 3D model - Small Outline Packages - SOH44
click to zoom

M48T37Y-70MH1E Details

  • Manufacturer Part Number:

    M48T37Y-70MH1E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Memory IC Type:

    STANDARD SRAM

M48T37Y-70MH1E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M48T37Y-70MH1E is -40°C to +85°C.
  • The M48T37Y-70MH1E has an internal POR circuit that resets the device when the power supply voltage (VCC) rises above 1.5V. No external POR circuit is required.
  • The recommended clock frequency for the M48T37Y-70MH1E is up to 1 MHz, but it can operate up to 2 MHz with some limitations.
  • To ensure data integrity, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly reset during power-up and power-down cycles.
  • Yes, the M48T37Y-70MH1E is suitable for battery-backed SRAM applications, as it has a low standby current and can retain data for up to 10 years with a 3V lithium battery.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T37Y-70MH1E Overview

Use the download button to access the M48T37Y-70MH1E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T3, or try a keyword search, such as SRAMs
