M48T37Y-70MH1F - STMicroelectronics

Description: 5.0 or 3.3 V, 256 Kbit (32 Kbit x 8) TIMEKEEPER® SRAM

Download M48T37Y-70MH1F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

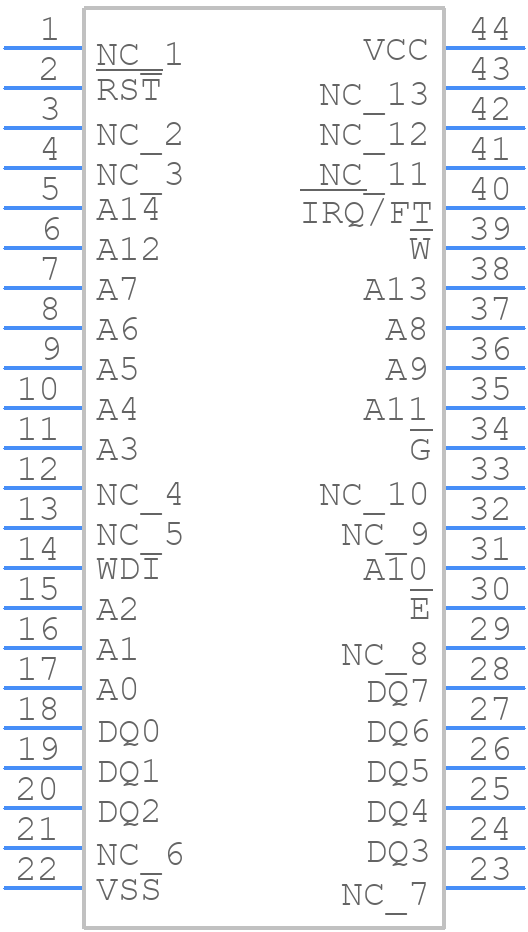

M48T37Y-70MH1F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M48T37Y-70MH1F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH44
click to zoom
3D Models
M48T37Y-70MH1F - STMicroelectronics - 3D model - Small Outline Packages - SOH44
click to zoom

M48T37Y-70MH1F Details

  • Manufacturer Part Number:

    M48T37Y-70MH1F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    44

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • JESD-609 Code:

    e3

  • Memory IC Type:

    STANDARD SRAM

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn) - immersion

  • Time@Peak Reflow Temperature-Max (s):

    30

M48T37Y-70MH1F Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M48T37Y-70MH1F is 4.5V to 5.5V.
  • The POR circuitry in the M48T37Y-70MH1F is designed to reset the device when the power supply voltage is below 3.5V. To handle POR, ensure that the power supply voltage ramps up slowly (typically 10ms) to allow the POR circuitry to stabilize.
  • The M48T37Y-70MH1F supports a maximum clock frequency of 70MHz.
  • To ensure data integrity, use the VCC pin to monitor the power supply voltage and implement a power-down or brownout detection circuit to prevent data corruption.
  • The typical current consumption of the M48T37Y-70MH1F is 15mA at 5V and 70MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T37Y-70MH1F Overview

Use the download button to access the M48T37Y-70MH1F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T3, or try a keyword search, such as SRAMs
