M48T58-70PC1 - STMicroelectronics

Description: STMicroelectronics M48T58-70PC1, Real Time Clock (RTC), 8192B RAM Parallel, 28-Pin PCDIP

Download M48T58-70PC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

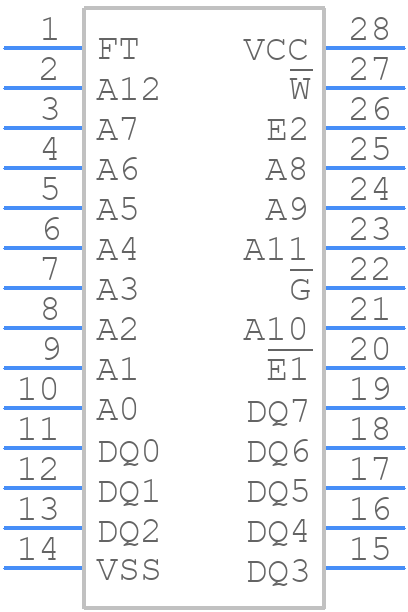

M48T58-70PC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

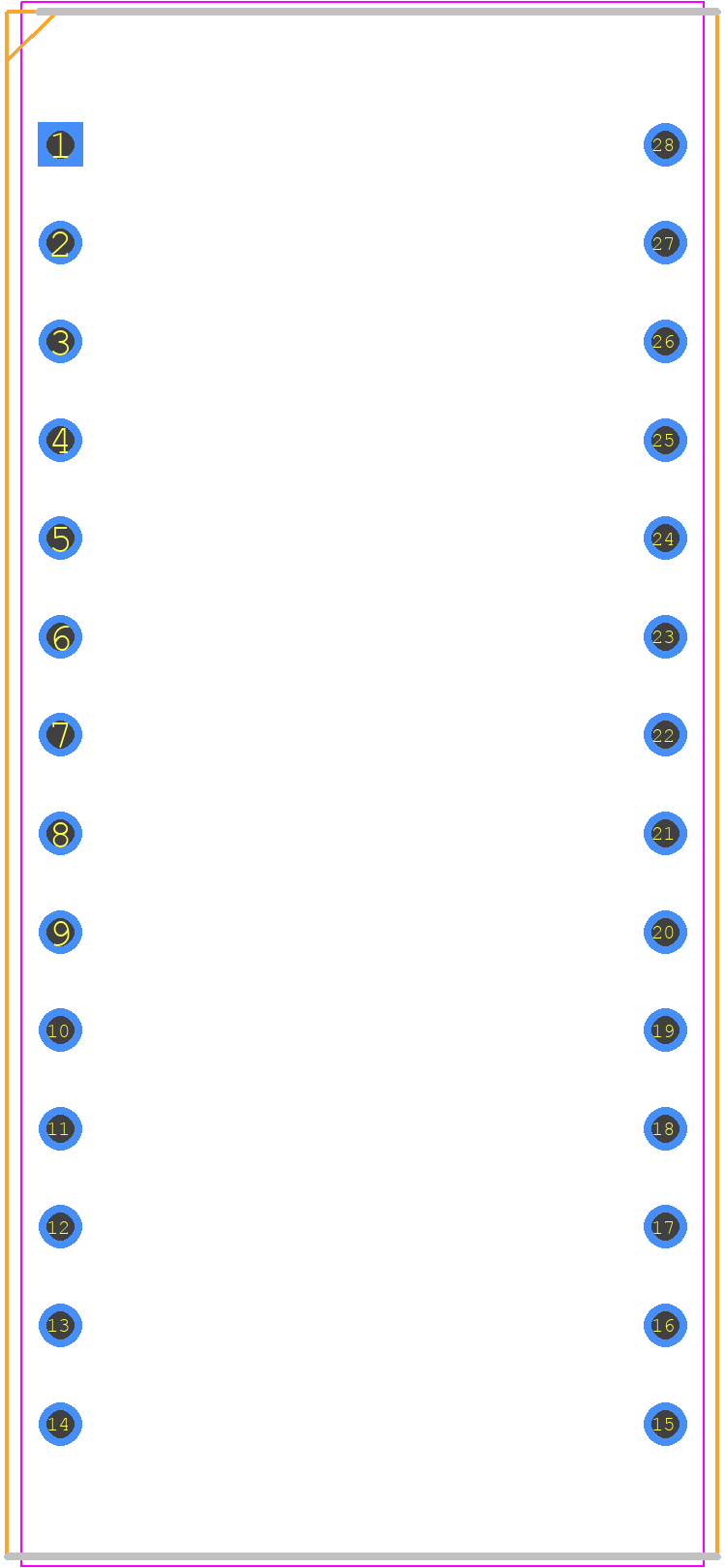

M48T58-70PC1 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PCDIP-28
click to zoom
3D Models
M48T58-70PC1 - STMicroelectronics - 3D model - Dual-In-Line Packages - PCDIP-28
click to zoom

M48T58-70PC1 Details

  • Manufacturer Part Number:

    M48T58-70PC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • JESD-609 Code:

    e3

  • Memory IC Type:

    STANDARD SRAM

  • Terminal Finish:

    Matte Tin (Sn)

M48T58-70PC1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M48T58-70PC1 is -40°C to +85°C.
  • The M48T58-70PC1 has a built-in POR circuit that resets the device when the power supply voltage rises above 1.5V. No external POR circuit is required.
  • The recommended clock frequency for the M48T58-70PC1 is up to 1 MHz, but it can operate up to 2 MHz with reduced voltage supply.
  • To ensure data retention, the M48T58-70PC1 requires a minimum voltage supply of 2.5V and a maximum storage temperature of 85°C.
  • Yes, the M48T58-70PC1 is suitable for battery-backed SRAM applications, providing a low-power, low-voltage solution for data retention.
