M48T58Y-70PC1 - STMicroelectronics

Description: M48T58Y-70PC1, Real Time Clock, Battery Backup, Calendar, Clock, 8192B RAM, Parallel, 4.5 → 5.5 V, 28-Pin PCDIP

Download M48T58Y-70PC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

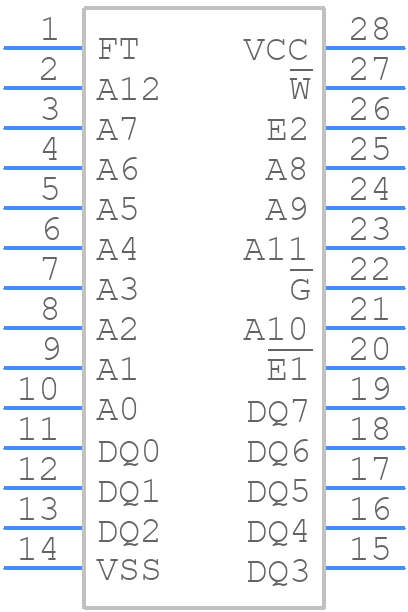

M48T58Y-70PC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

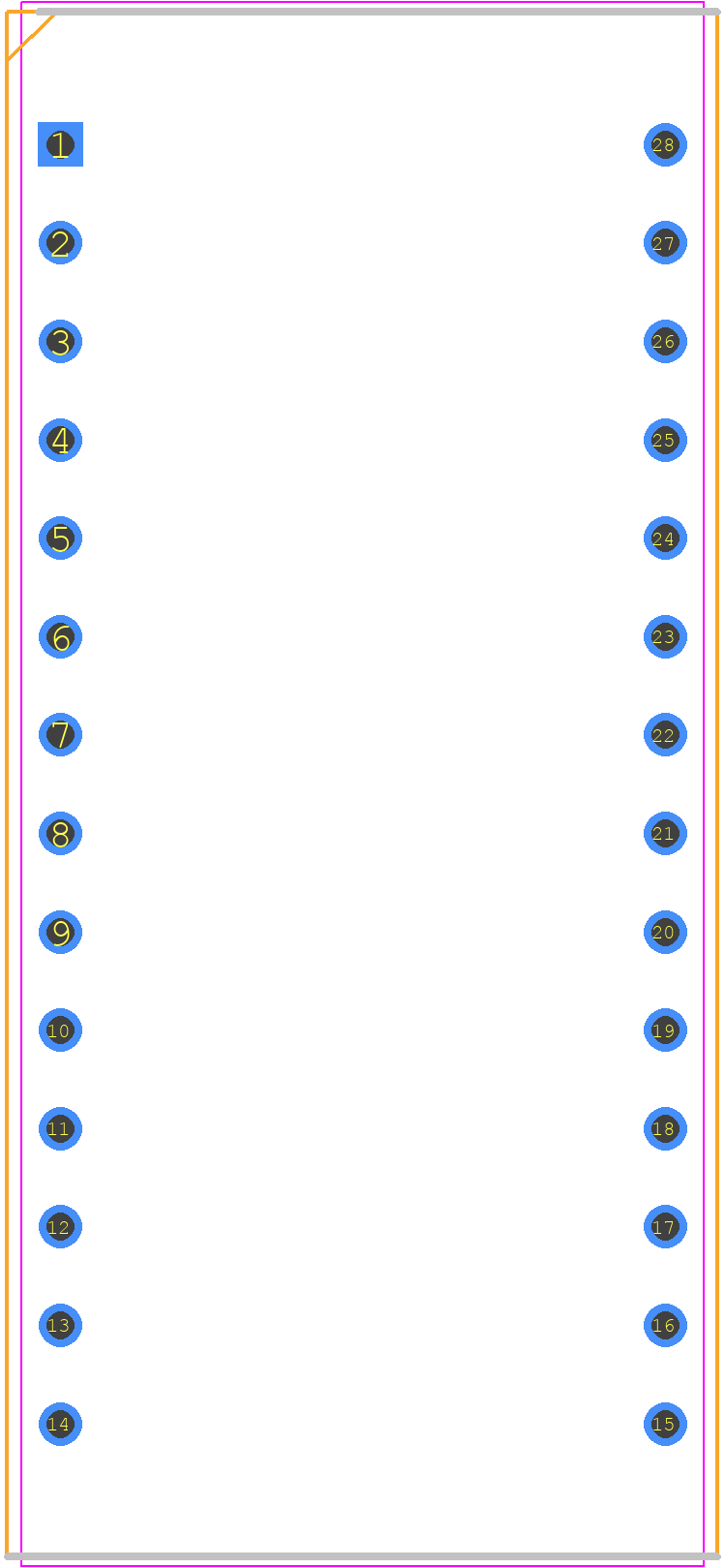

M48T58Y-70PC1 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PCDIP28_2020
click to zoom
3D Models
M48T58Y-70PC1 - STMicroelectronics - 3D model - Dual-In-Line Packages - PCDIP28_2020
click to zoom

M48T58Y-70PC1 Details

  • Manufacturer Part Number:

    M48T58Y-70PC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Memory IC Type:

    STANDARD SRAM

M48T58Y-70PC1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M48T58Y-70PC1 is -40°C to +85°C.
  • The M48T58Y-70PC1 has a built-in POR circuit that resets the device when the power supply voltage rises above 1.5V. No external POR circuit is required.
  • The recommended storage condition for the M48T58Y-70PC1 is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less.
  • Yes, the M48T58Y-70PC1 is suitable for battery-backed SRAM applications. It has a low standby current of 10μA, making it suitable for battery-powered systems.
  • The M48T58Y-70PC1 can be interfaced with a microcontroller using a standard 8-bit bus interface. The device is compatible with most microcontrollers and can be connected using a simple bus interface circuit.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T58Y-70PC1 Overview

Use the download button to access the M48T58Y-70PC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T5, or try a keyword search, such as SRAMs
