M48Z12-200PC1 - STMicroelectronics

Description: NVSRAM (Non-Volatile SRAM) Memory IC 16Kbit Parallel 200 ns 24-PCDIP, CAPHAT® 4.5V ~ 5.5V 0°C ~ 70°C (TA)

Download M48Z12-200PC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

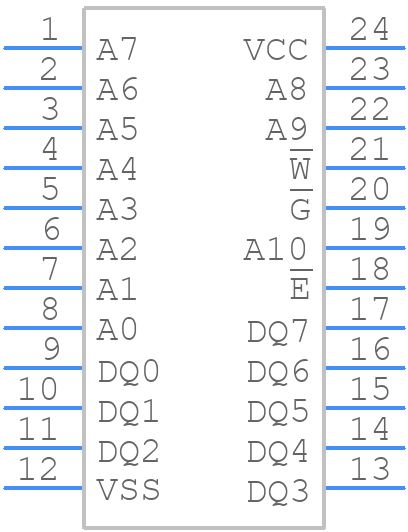

M48Z12-200PC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

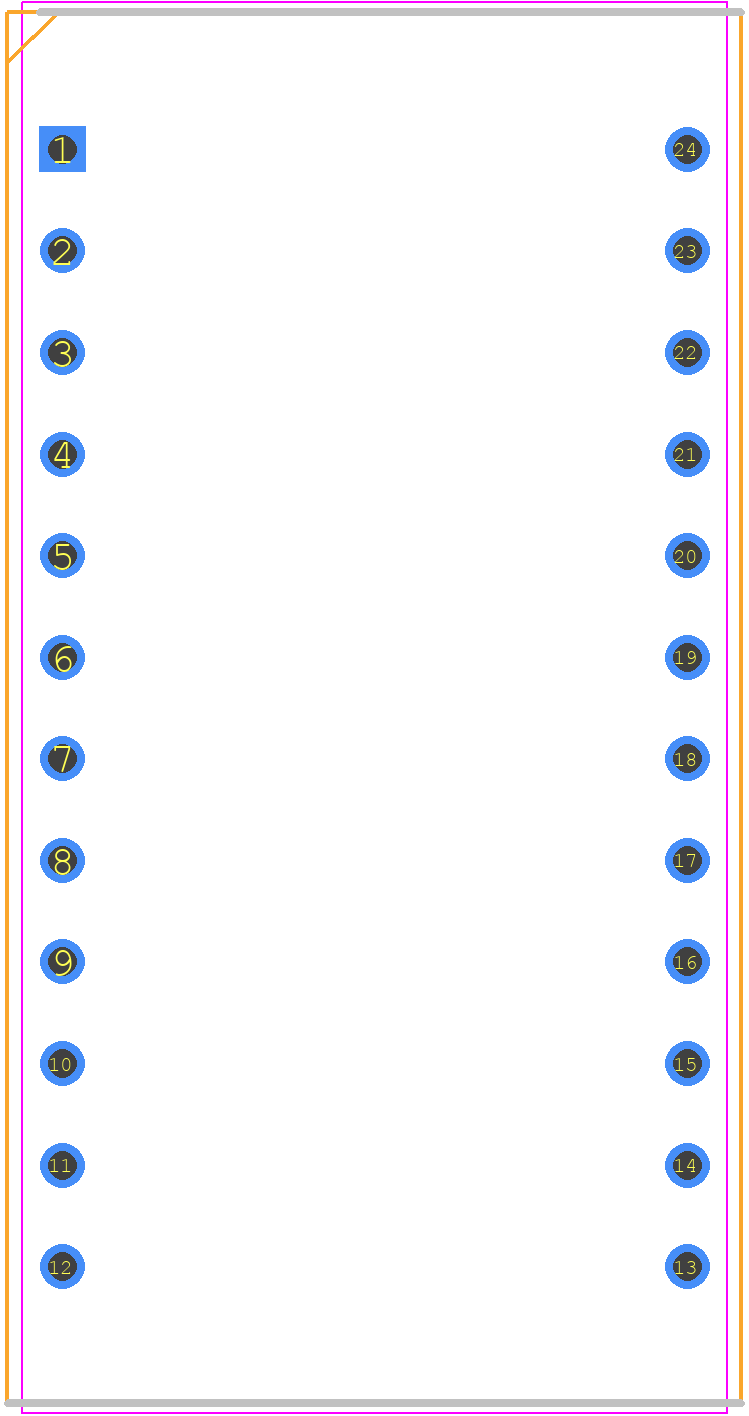

M48Z12-200PC1 - STMicroelectronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - PDIP 24.7 – 24-pin plastic DIP
click to zoom

M48Z12-200PC1 Details

  • Manufacturer Part Number:

    M48Z12-200PC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, ROHS COMPLIANT, CAPHAT, PLASTIC, DIP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Access Time-Max:

    200 ns

  • Additional Feature:

    BATTERY BACK-UP; POWER SUPPLY WRITE PROTECTION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    34.545 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    NON-VOLATILE SRAM MODULE

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    9.65 mm

  • Standby Current-Max:

    0.003 A

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

M48Z12-200PC1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M48Z12-200PC1 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to +125°C.
  • To ensure proper power-on and initialization, make sure to follow the recommended power-up sequence: VCC must be applied before VPP, and VCC must be stable before accessing the device. Additionally, the device requires a minimum of 10ms power-on reset pulse to ensure proper initialization.
  • The VPP (Programming Voltage) pin is used to supply the programming voltage during flash memory programming. It should be connected to a 12.5V ± 0.5V power source during programming, and to VCC or left open-circuit during normal operation.
  • To preserve the contents of the BBSRAM during power-down, ensure that the VCC supply is reduced to 0V before the battery voltage (VBAT) falls below 2.2V. During power-up, apply VCC before VBAT to prevent data corruption.
  • To minimize noise and ensure reliable operation, follow these PCB design guidelines: keep the device away from high-frequency sources, use a solid ground plane, and ensure that the VCC and VBAT pins have a low-impedance path to the power source. Additionally, use a 0.1uF decoupling capacitor between VCC and GND, and a 10uF capacitor between VBAT and GND.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48Z12-200PC1 Overview

Use the download button to access the M48Z12-200PC1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M48Z1, or try a keyword search, such as SRAMs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
