M48Z35AV-10MH1E - STMicroelectronics

Description: 5.0 V or 3.3 V, 256 Kbit (32 Kbit x 8) ZEROPOWER® SRAM

Download M48Z35AV-10MH1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

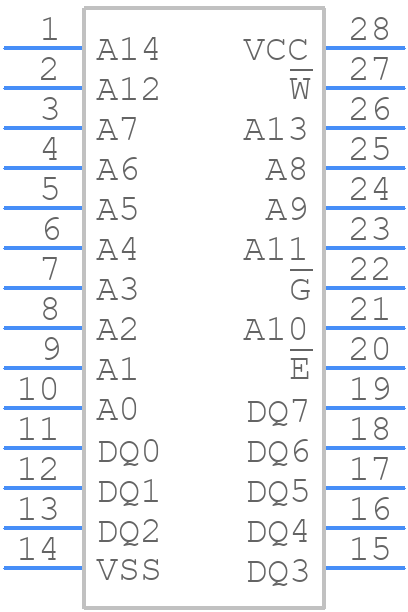

M48Z35AV-10MH1E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

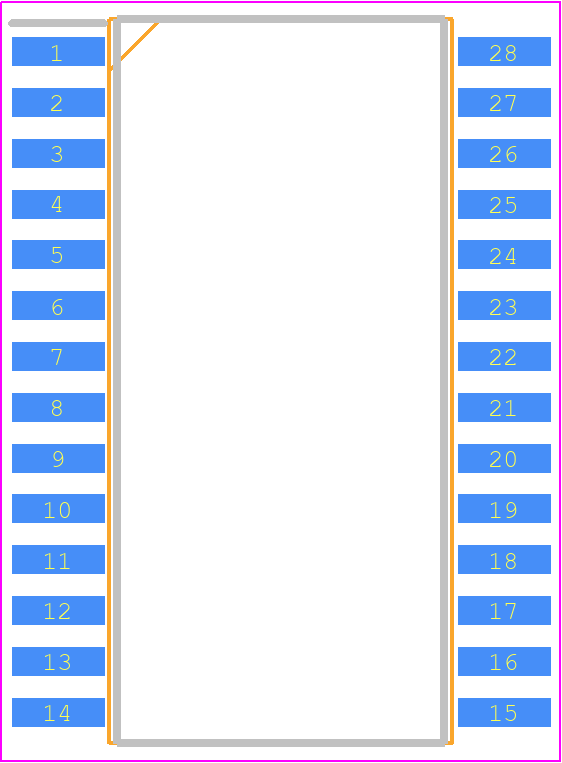

M48Z35AV-10MH1E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH28
click to zoom
3D Models
M48Z35AV-10MH1E - STMicroelectronics - 3D model - Small Outline Packages - SOH28
click to zoom

M48Z35AV-10MH1E Details

  • Manufacturer Part Number:

    M48Z35AV-10MH1E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOIC-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Access Time-Max:

    100 ns

  • Additional Feature:

    SNAPHAT BATTERY TO BE ORDERED SEPARATELY

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    18.1 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.05 mm

  • Standby Current-Max:

    0.003 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    8.56 mm

M48Z35AV-10MH1E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M48Z35AV-10MH1E is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. Additionally, make sure to provide a stable power supply with minimal noise and ripple to prevent damage to the device.
  • The M48Z35AV-10MH1E supports a maximum clock frequency of 10 MHz, as specified in the datasheet. However, it's essential to note that the device can operate at lower clock frequencies, and the maximum frequency may vary depending on the specific application and operating conditions.
  • The M48Z35AV-10MH1E has a built-in brownout detection circuit that resets the device when the supply voltage falls below a certain threshold. To handle brownout detection and reset, it's recommended to use an external capacitor to filter the power supply and ensure a smooth reset sequence.
  • The typical current consumption of the M48Z35AV-10MH1E varies depending on the operating mode and frequency. According to the datasheet, the typical current consumption is around 1.5 mA at 10 MHz, but this value can increase or decrease depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48Z35AV-10MH1E Overview

Use the download button to access the M48Z35AV-10MH1E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48Z3, or try a keyword search, such as SRAMs
